BQ Series

Mini-ITX Chassis

3.3L Small Form Factor
Small, smart, sleek and spectacular! The BQ Series may only be 3.3 liters in size, but is loaded with useful features.

Ultra Small Footprint Chassis
Space Saving
Dual Layer Interior Structure
150W Internal PSU or 120W External Adaptor
Tool-Free Clips

BQ660S

Specifications

Model

MB Form Factor

Case Size

Color

External Drive Bays

Internal Drive Bays

Front Ports

Product Dimensions
(H x W x D)
with Front Panel

Product Dimensions
(H x W x D)
w/o Front Panel

I/O Expansion Slots

Model

Compatibility

Power Supply

Thermal Solution

Safety

Security

Optional

Packing Dimensions
(H x W x D)

Shipping Information

BQ660S

Mini-ITX

3.3L
S.F.F Slim Chassis
(Ultra Small Form Factor)
- Black / Orange
- Black / Silver
Slim ODD x 1 or 2.5” HDD x 1

2.5" HDD x 2

USB 2.0 x 2 (or USB 3.0 x 2),
HD Audio

234 x 87 x 222 mm
9.2” x 3.4” x 8.7”
Vertical: 255 x 129 x 222 mm (with Foot Stand)
Horizontal: 107 x 255 x 222 mm (with Foot Stand)

225 x 76 x 193 mm (3.3L)
8.9" x 3.0" x 7.6"

N/A

BQ660S

．Maximum CPU Cooler Height: 51 mm

．Option 1: 150W Internal PSU (IP-AD150A7-2)
．Option 2: DC-DC Inverter Board (IP-V120DD)
+ 120W External Adaptor

N/A

Meets RoHS, CE and FCC Class B Requirements

Kensington Slot

．3-in-1 Card Reader
．2.5” Drive Bay x 1
．Security Screws
．External Remote Control
．USB 3.0 x 2 or USB 2.0

273 x 270 x 120 mm (10.7” x 10.6” x 4.7”)
334 x 270 x 120 mm (with Adaptor)

Single Packing:
- 20': 3,192, 40': 6,536, 40' H: 7,310 (w/o Adaptor)
- 20': 2,450, 40': 5,145, 40' H: 5,957 (with Adaptor)
Single Packing + Pallets:
- 20': 2,240, 40': 4,928, 40' H: 5,632 (w/o Adaptor)
- 20': 2,016, 40': 4,368, 40' H: 5,096 (with Adaptor)
BQ656S

Mini-ITX

3.3L
S.F.F Slim Chassis
(Ultra Small Form Factor)
- Black
Slim ODD x 1 or 2.5” HDD x 1

2.5" HDD x 2

USB 2.0 x 2 (or USB 3.0 x 2),
HD Audio

225 x 87 x 281 mm
8.9” x 3.4” x 11.1”
Vertical: 246 x 129 x 281 mm (with Foot Stand)
Horizontal: 107 x 246 x 281 mm (with Foot Stand)

225 x 76 x 193 mm (3.3L)
8.9" x 3.0" x 7.6"

N/A

BQ656S

．Maximum CPU Cooler Height: 51 mm

．Option 1: 150W Internal PSU (IP-AD150A7-2)
．Option 2: DC-DC Inverter Board (IP-V120DD)
+ 120W External Adaptor

N/A

Meets RoHS, CE and FCC Class B Requirements

Kensington Slot

．3-in-1 Card Reader
．2.5” Drive Bay x 1
．Security Screws
．External Remote Control
．USB 3.0 x 2 or USB 2.0

273 x 270 x 120 mm (10.7” x 10.6” x 4.7”)
334 x 270 x 120 mm (with Adaptor)

Single Packing:
- 20': 3,192, 40': 6,536, 40' H: 7,310 (w/o Adaptor)
- 20': 2,450, 40': 5,145, 40' H: 5,957 (with Adaptor)
Single Packing + Pallets:
- 20': 2,240, 40': 4,928, 40' H: 5,632 (w/o Adaptor)
- 20': 2,016, 40': 4,368, 40' H: 5,096 (with Adaptor)

* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

BQ660S
BQ656S

BQ660S

Ultra Small Footprint Chassis

Small, smart, sleek and spectacular! Although the BQ Series is only
3.3 liters in size but it includes various multi-functional features

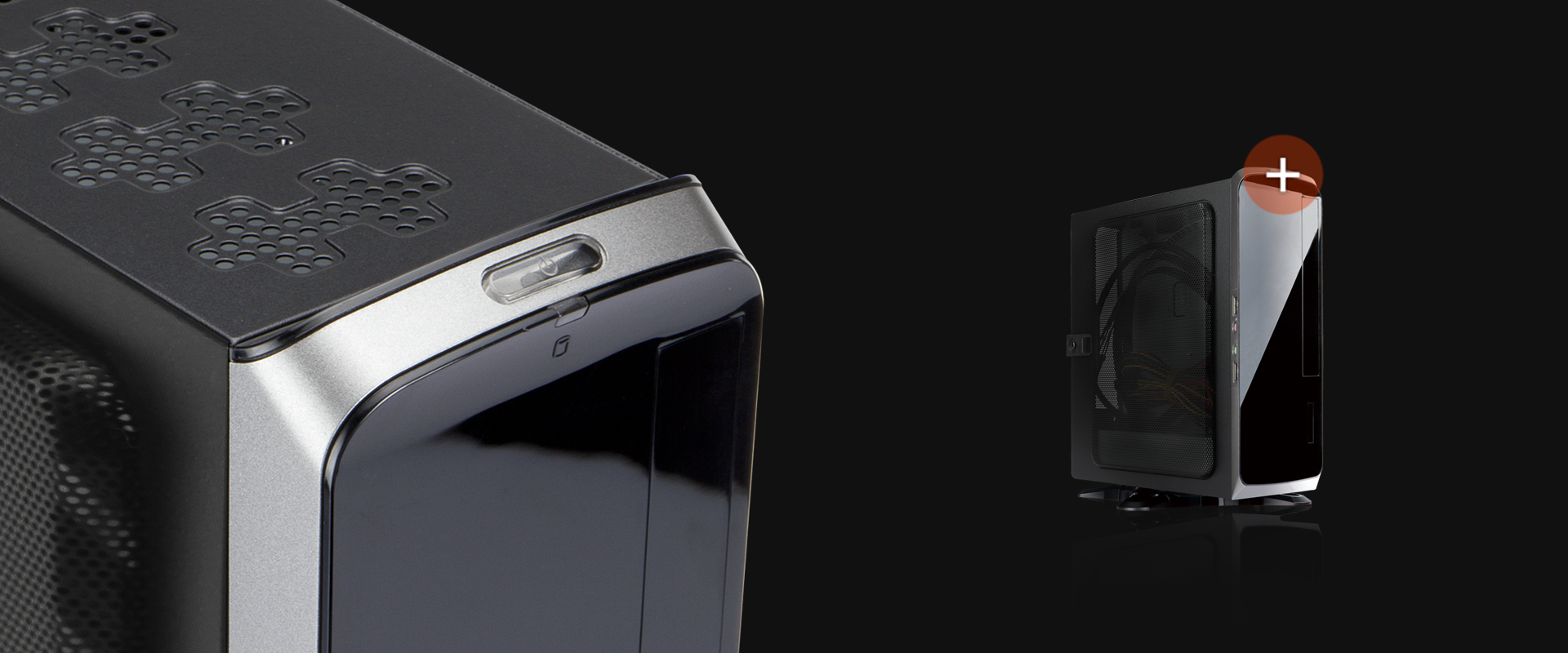

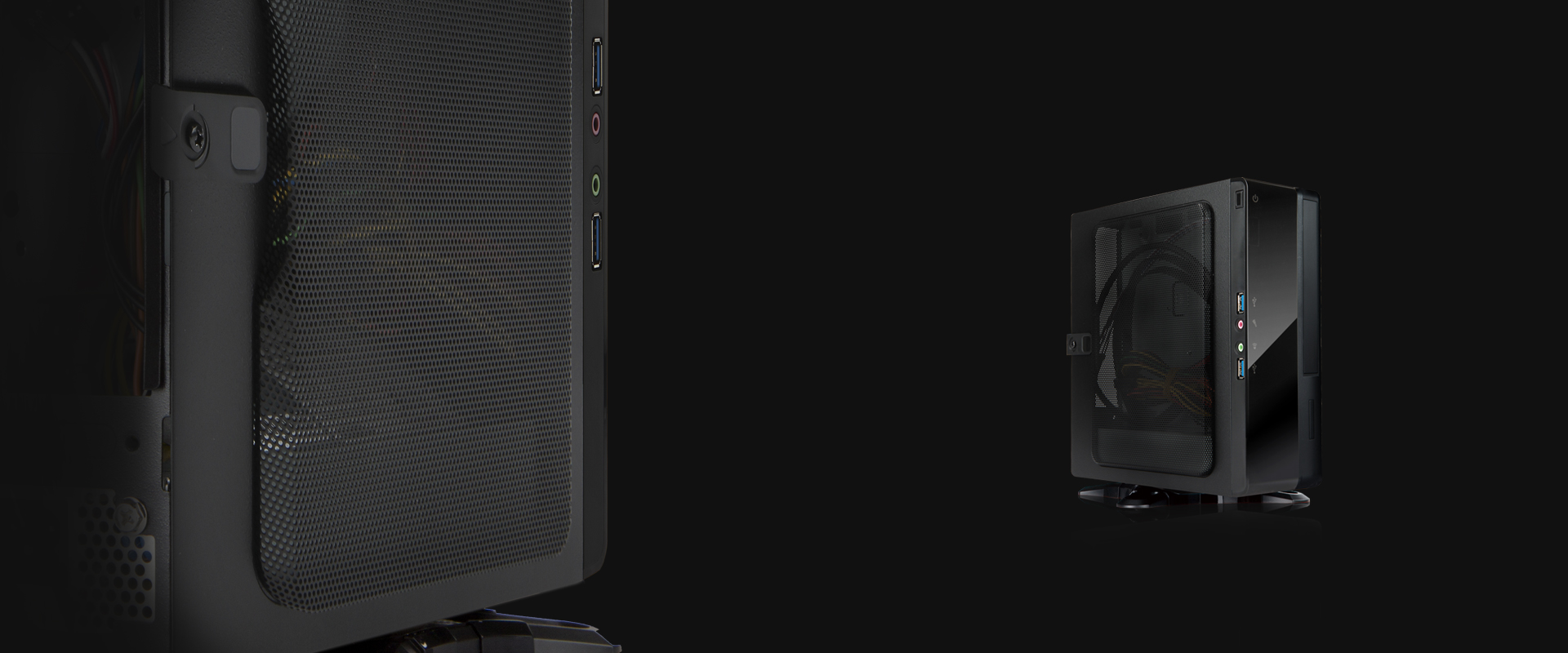

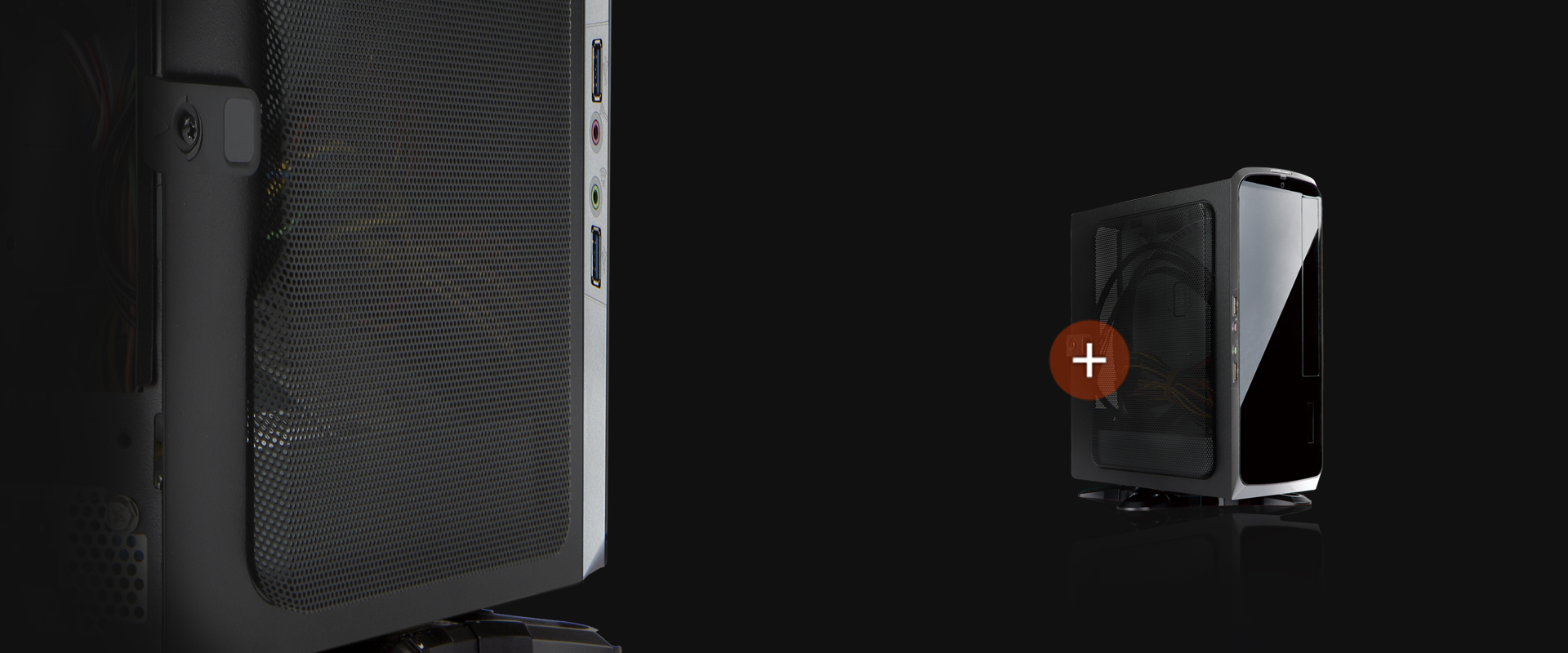

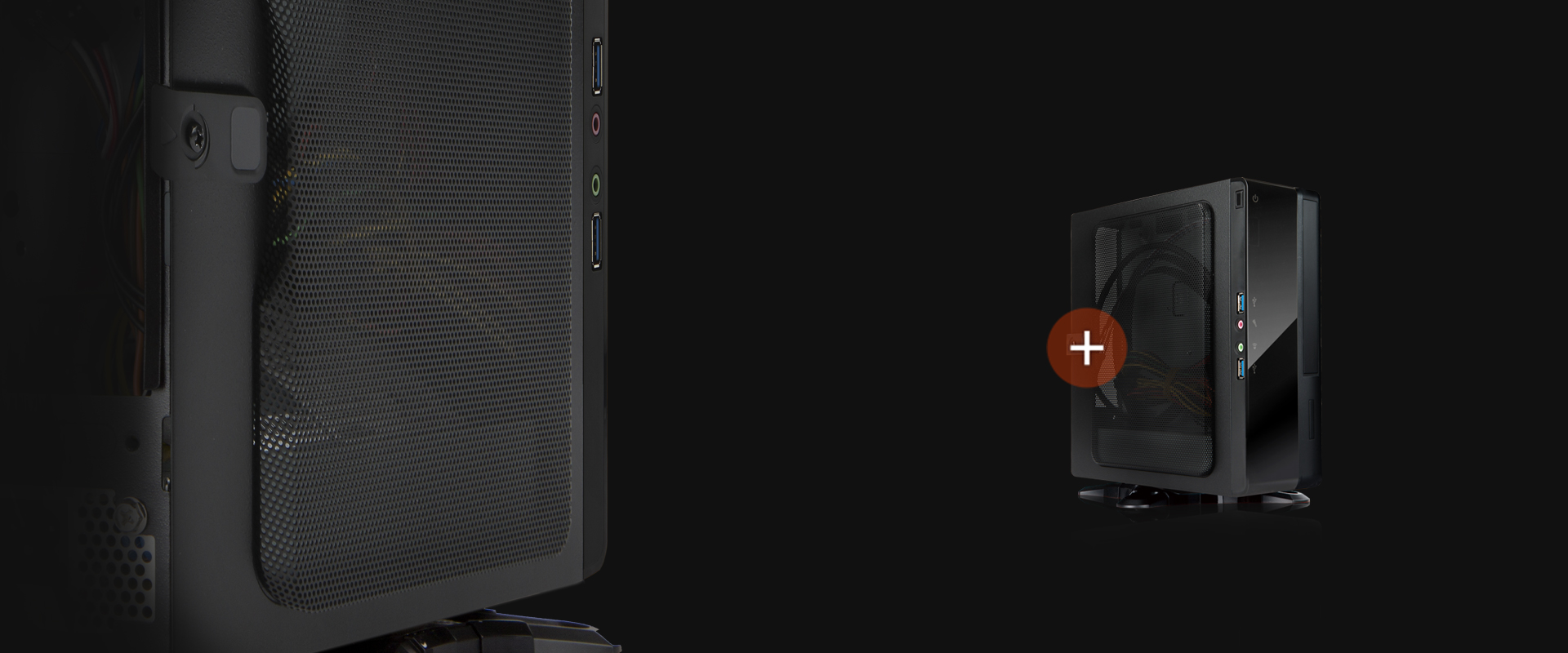

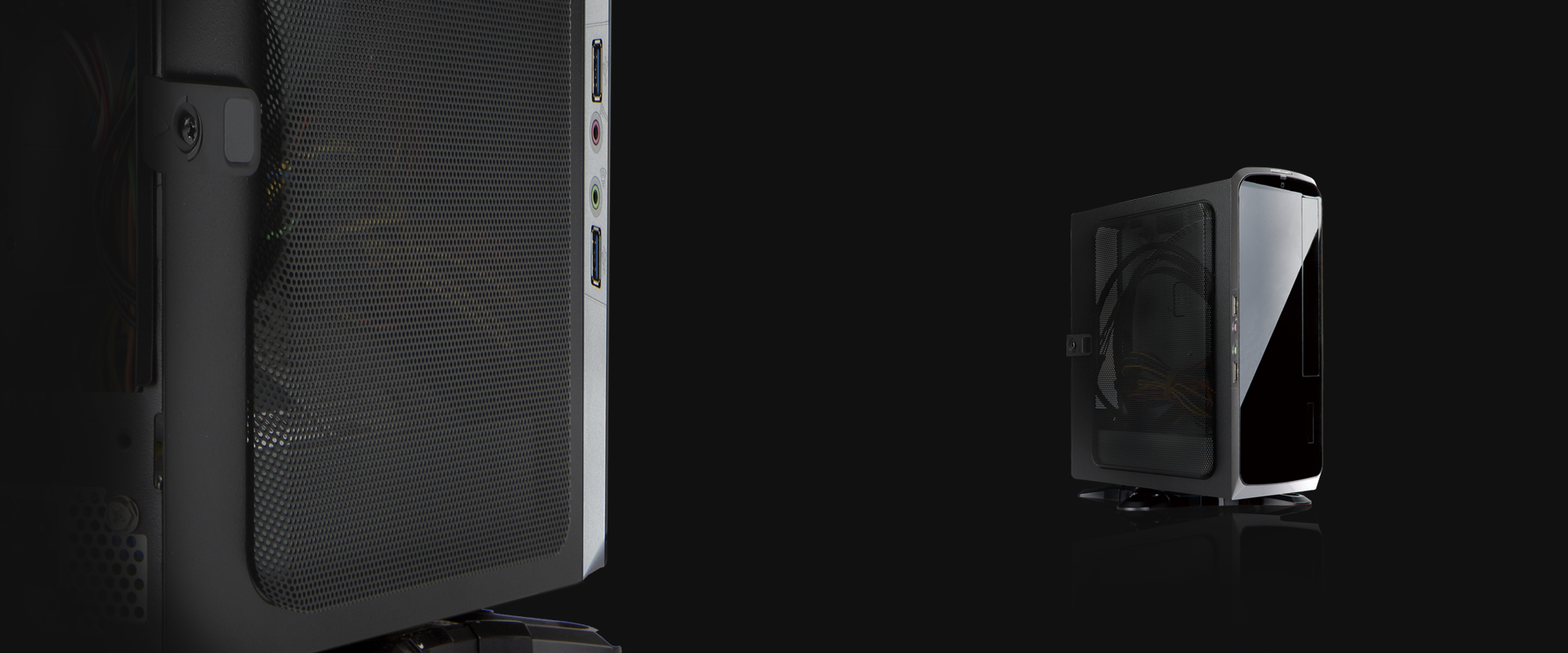

Mass Ventilation Area

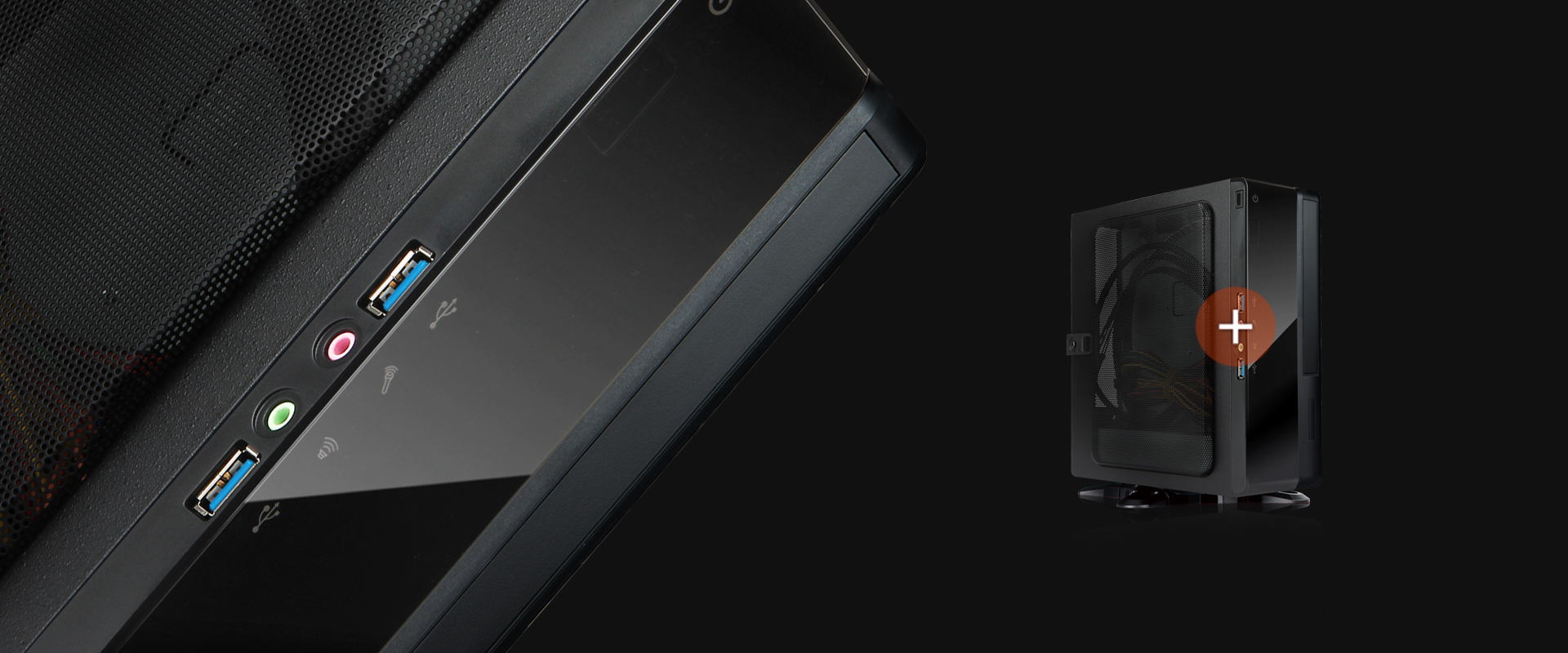

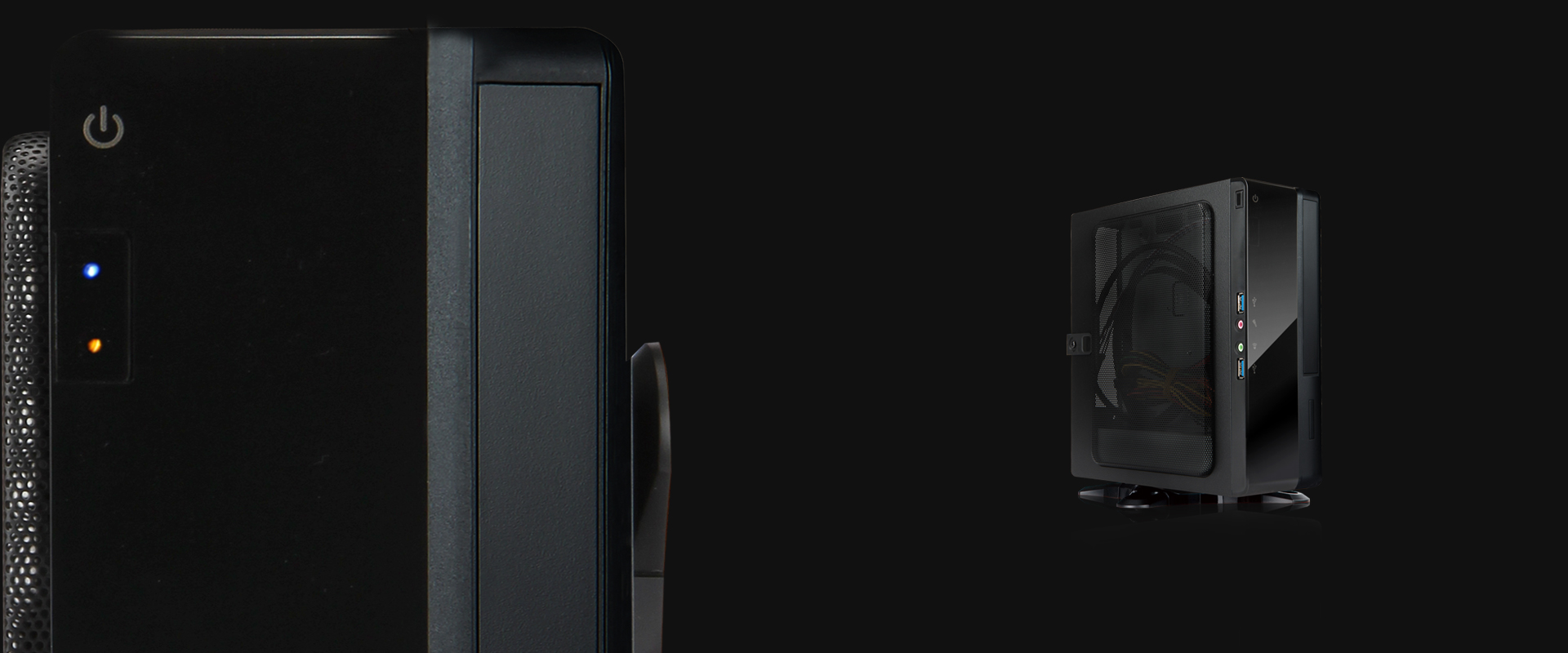

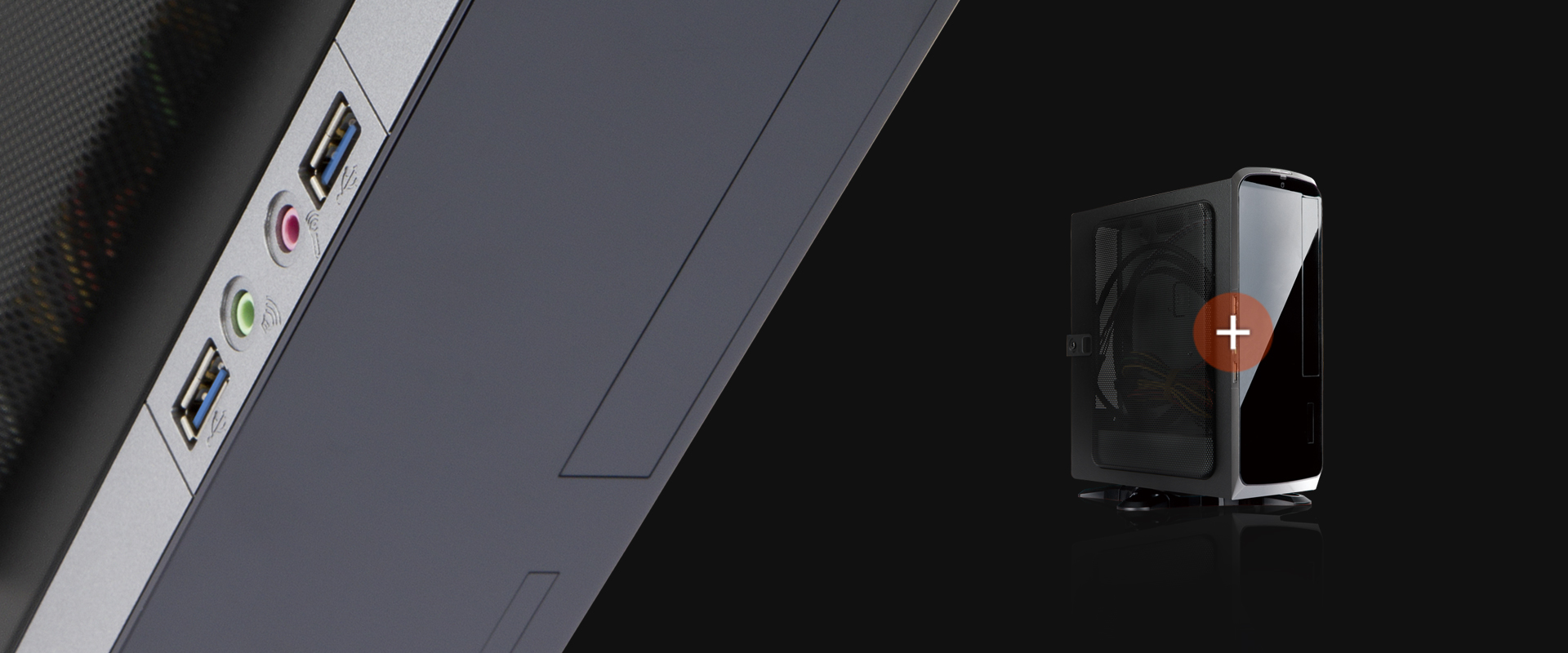

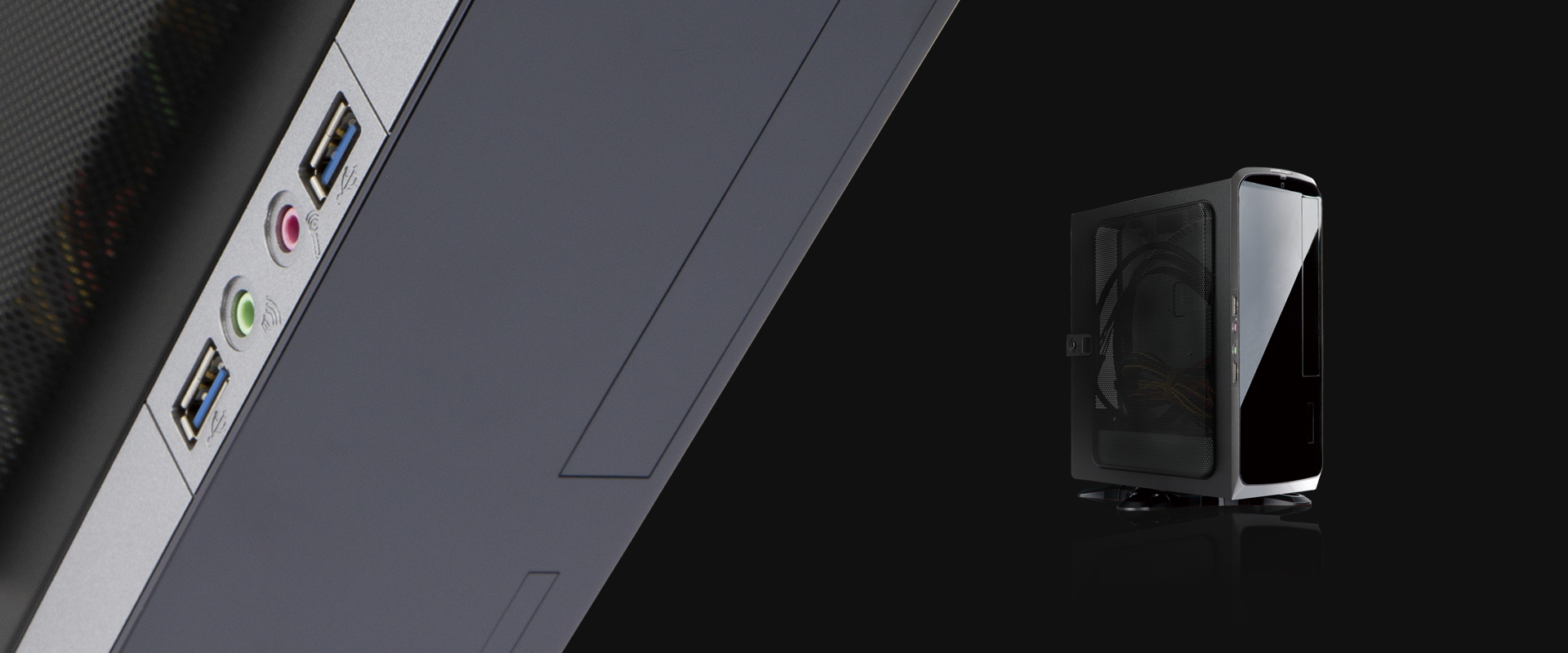

Front Ports

．USB 2.0 x 2
．HD Audio x 1
．Optional 3-in-1 Card Reader
(Available for OEM project only)
．Optional USB 3.0 x 2

Gallery

BQ660S

Specifications

BQ656S

Ultra Small Footprint Chassis

Small, smart, sleek and spectacular! Although the BQ Series is only
3.3 liters in size but it includes various multi-functional features

Mass Ventilation Area

Front Ports

．USB 2.0 x 2
．HD Audio x 1
．Optional 3-in-1 Card Reader
(Available for OEM project only)
．Optional USB 3.0 x 2

Gallery

BQ656S

Specifications

i5 & i7 Solution
(CPU Power 65W or Lower)

BQS side panel and 150W internal power supply or 120W external adaptor increases the internal space for better airflow. Thermal solutions to accommodate i5 and i7 CPU (must be 65W or lower) and to support advanced Mini-ITX.

Supports Mini-ITX Motherboard

BQ Series supports standard Mini-ITX motherboard for easy integration.

Dual Layer Interior Structure

The BQ Series uses an advanced dual layer interior structure design. The spacious interior supports a DVD Drive, Hard Drive, and 3-in-1 Card Reader.

Antenna Mounting Hole Ready for WLAN Card

Space Saving

With a depth of less than 80mm, this chassis can easily be mounted behind a LCD monitor. The BQ Series does minimize its size while maximizing its features.

Tool-Free

Tool-Free Clips on Side Panel Provide Easy Assembly.

Internal Drive Bay

．Slim ODD Bay x 1 or 2.5” Drive Bay x 1
．2.5” Drive Bay x 1

Excellent Thermal Solution

Mass Ventilation Area

Rear Ports

．eSATA x 1 (with Module)
．USB2.0 x 2 (with Module)
．Universal Antenna Modules (UAMs) Mounting Hole Ready

Power Supply

．150W Internal PSU or 120W External Adaptor

Selection of either an 150W Internal PSU or 120W External Adaptor upon application.
Features low power consumption and minimizes noise levels for a silent computing experience.

150W Internal Power Supply (IP-AD150A7-2)

DC-DC Inverter Board (IP-V120DD)
+ 120W Adaptor (Optional)

Optional

External Remote Control

Security Screws

Recommended Power Supply

Download
