CP Series

15.5L Small Form Factor
Micro-ATX Mini Tower Chassis

Multiple System Integration Solution
The CP series is easy to integrate with its flexible design and excellent performance capabilities. It is a versatile case compatible with standard components and provides various solutions for system integration.

‧Easy Integration
‧Flexible Capacity Configuration
‧Full-Height PCI-E Slots
‧Optimal Thermal Performance
‧Optional Tool-Free Drive Bays and Side Panels

CP712

Specifications

Model
MB Form Factor
Case Size
Color
External Drive Bays
Internal Drive Bays
Front Ports
Product Dimensions
(H x W x D)
with Front Panel
Product Dimensions
(H x W x D)
w/o Front Panel
I/O Expansion Slots
Model
Compatibility
Power Supply
Thermal Solution
Safety
Security
Optional
Packing Dimensions
(H x W x D)
Shipping Information
  • CP712
    Micro-ATX, Mini-ITX
    15.5L
    S.F.F Tiny Chassis
    (Ultra Small Form Factor)
    • Black
    Slim ODD x 1 (9.5mm Thickness),
    3.5" x 1
    Option 1: 3.5" x 1, 2.5” x 1
    Option 2: 2.5” x 3
    Option 3: 2.5” x 2 + 90mm Fan x 1
    USB 3.0 x 2 + USB 2.0 x 2
    HD Audio
    Optional Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)
    361 x 160 x 310 mm
    14.2” x 6.3” x 12.2”
    (with Footpad, PCI-E Clip)

    361 x 163 x 310 mm
    14.2” x 6.4” x 12.2”
    (with Footpad, PCI-E Clip, Side Panel Clips)
    350 x 160 x 276 mm
    (15.5L)
    13.8" x 6.3" x 10.9"
    Full Height Slot x 4
    (Full Size Max. 260mm)
    CP712
    .Maximum Graphics Card Length / Width: 260 mm / 137 mm
    .Maximum CPU Cooler Height: 137 mm
    ATX 12V Form Factor, PSII Size(Maximum Length up to 140mm)
    ‧Intel Certified TAC 2.0
    ‧Supports 90mm Rear Fan
    ‧Supports 90mm Front Fan (Occupied 2.5" x 1)
    Meets RoHS, CE and FCC Class B Requirements
    Padlock Loop / Kensington Slot
    ‧3.5" to 2.5" HDD/SSD Bracket
    ‧Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)
    ‧90mm Rear Fan
    ‧90mm Front Fan with Tool-Free Fan Holder
    ‧Tool-Free Side Panel
    ‧Tool-Free Slim ODD/FDD(3.5" Card Reader) Bay Clips
    ‧Internal Speaker
    ‧Chassis Intrusion Switch
    361 x 402 x 212 mm
    (13.36” x 15.8” x 8.3”)
    Single Packing:
    -20’: 940, 40’: 2,038, 40’ H: 2,261
    Single Packing + Pallets:
    -20’: 672, 40’: 1,568, 40’ H: 1,680
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.

CP712

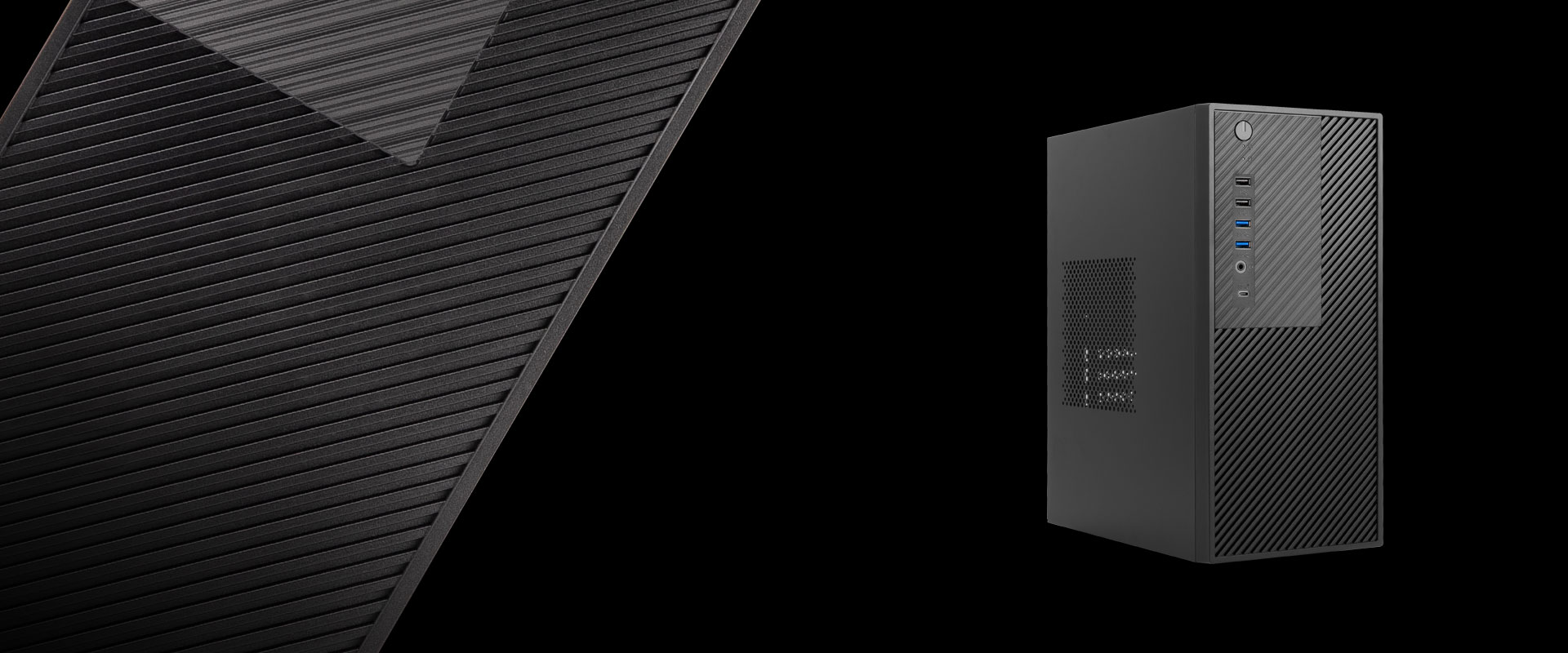

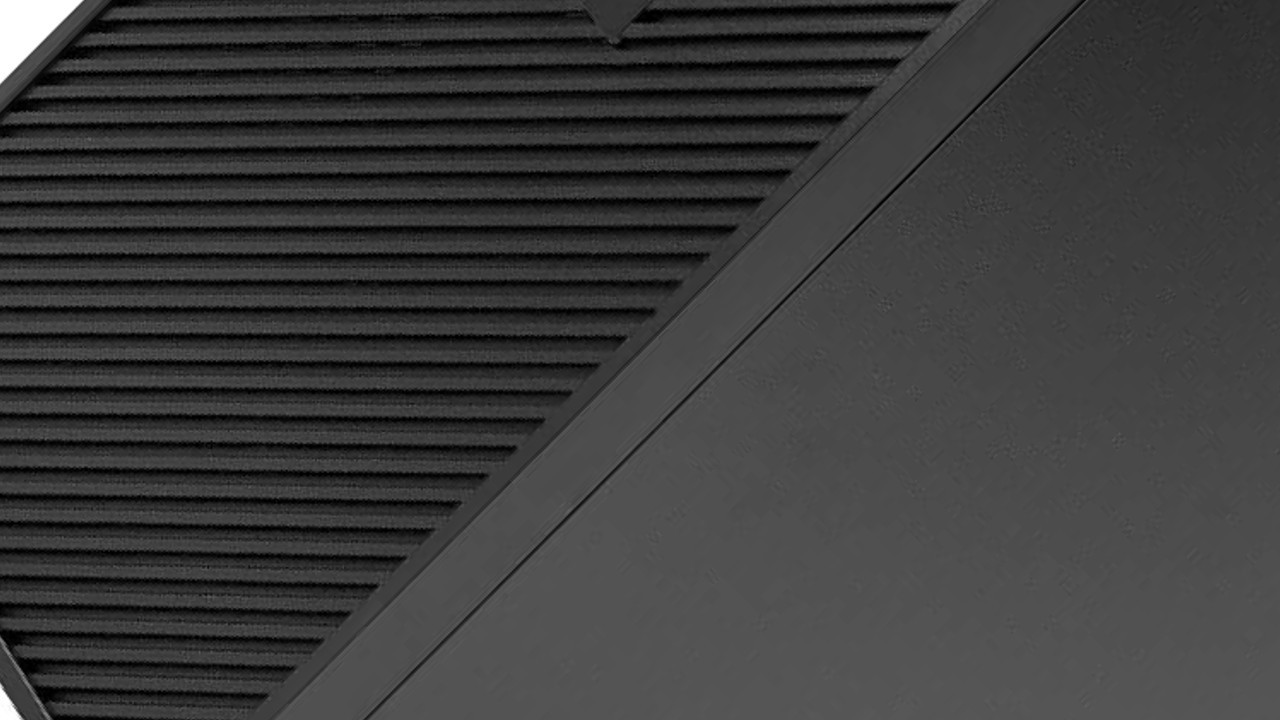

Unique Texture and Optimized Airflow Fused as One

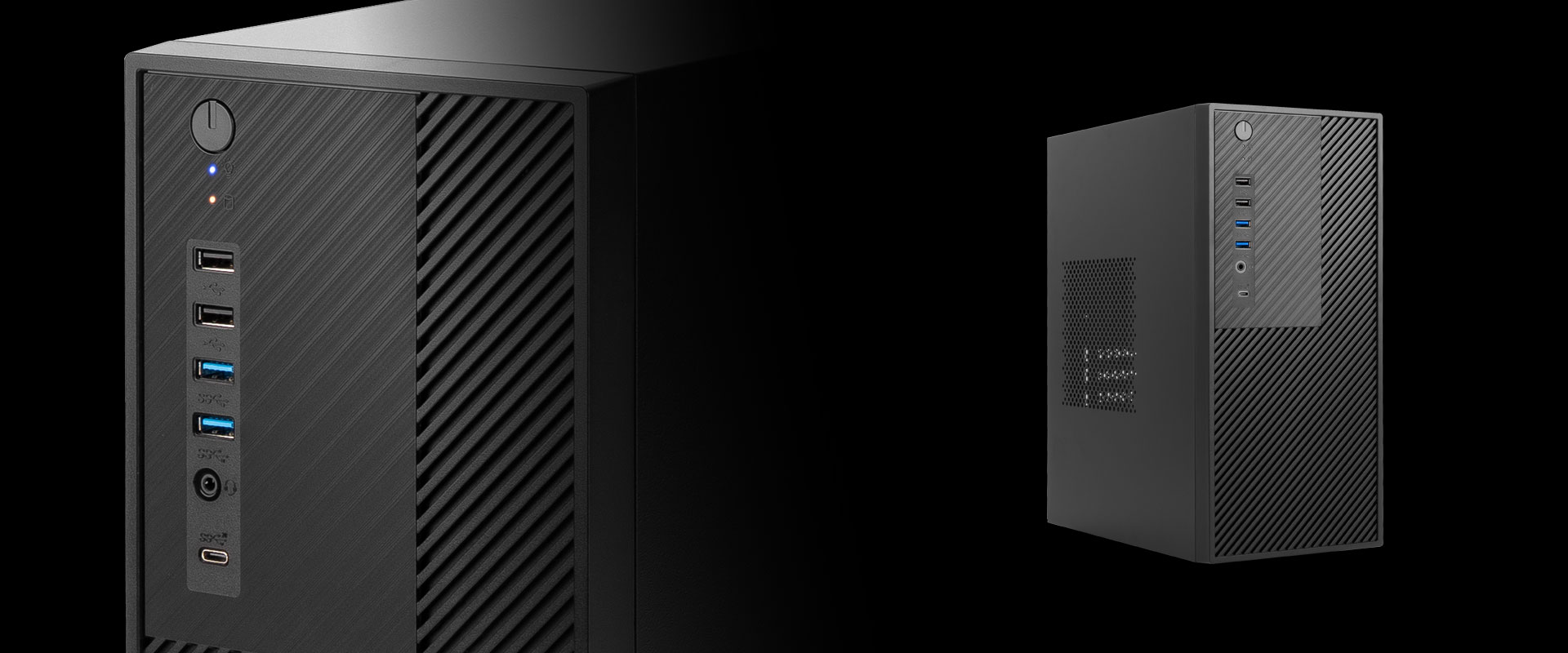

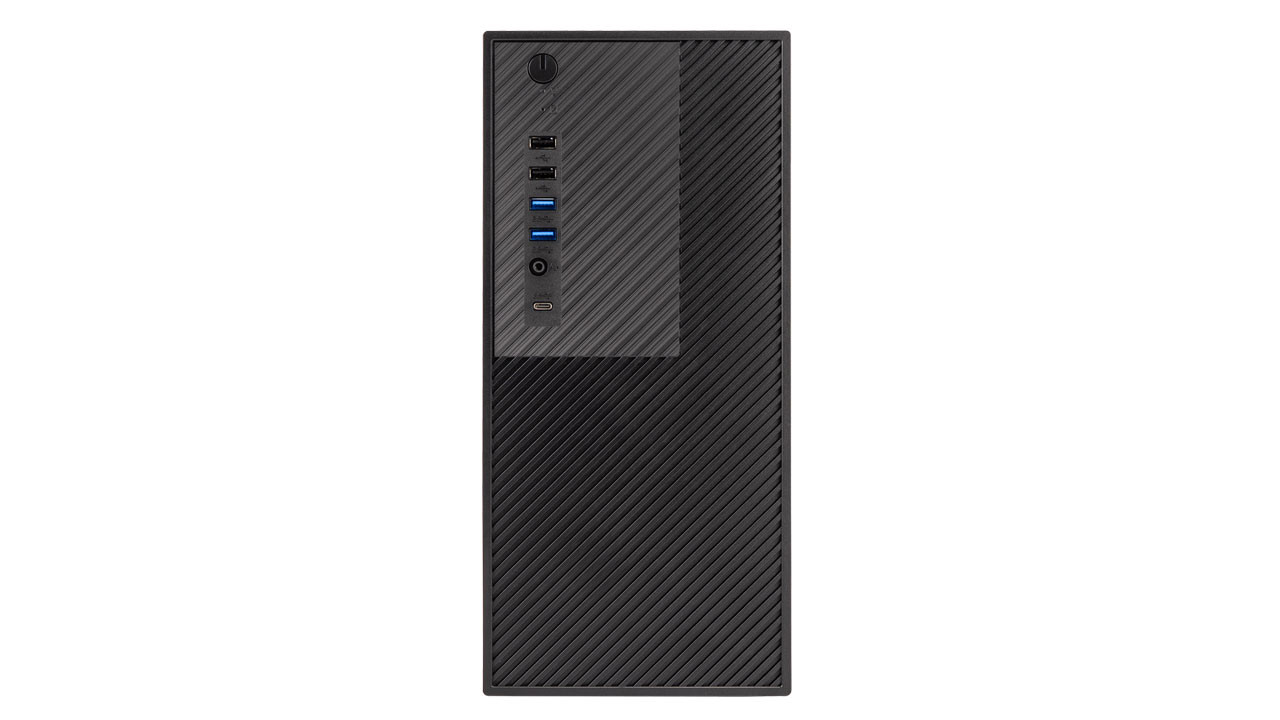

Easy Access with Multiple Connection

Features front USB 3.0, USB 2.0 ports for easy access to external devices.
Optional an additional Type C port for extra connectivity.



‧ USB 3.0 x 2 + USB 2.0 x 2
‧ HD Audio (Headphone & Mic)



‧ Optional Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)




Gallery

CP712

Specifications

15.5L Compact Size

Only 15.5 Liters, the CP Series provides a small form factor design that delivers industry-leading great versatility, unmatched price/performance value, and seamless scalability.

Compatibility Standards

Compatible with all desktop standard components and easy system integration.
Efficiently utilizes its compact size by combining the ultra-small form factor design with a 15.5 liters chassis, supporting Micro-ATX motherboards, ATX power supplies and full-height expansion cards.

Flexible Capacity Configuration

Accommodates 1 x slim ODD, 1 or 2 x 3.5” HDDs, 2 or 3 x 2.5” HDDs, and even two 90mm fans! It offers exceptional flexibility and scalability for enhanced multi-function applications!

Highly Expandable

Supports 4 full height PCI-E slots, so be exploited the configurable options that they offer to harness the maximum performance at different component levels.

Optimal Airflow

Optional 90mm front fan and 90mm rear fan can manage the PC air cooling system to optimize airflow and achieve amazing thermal solution.

Supports Standard ATX 12V PSU

Standard ATX 12V power supply platform offers high performance and low-cost power solution.

Side Panel Handle

The side panel handles increase installation convenience.

Optional Tool-Free Side Panel and Drive Bays

The Side panel, 5.25” and 3.5” drive bays with tool-free clips speed up system assembly and maintenance.

Tool-Free

‧Screw-less Slim ODD and FDD/3.5" Card Reader Clips (Optional)

‧Tool-Free Side Panel Clips (Optional)

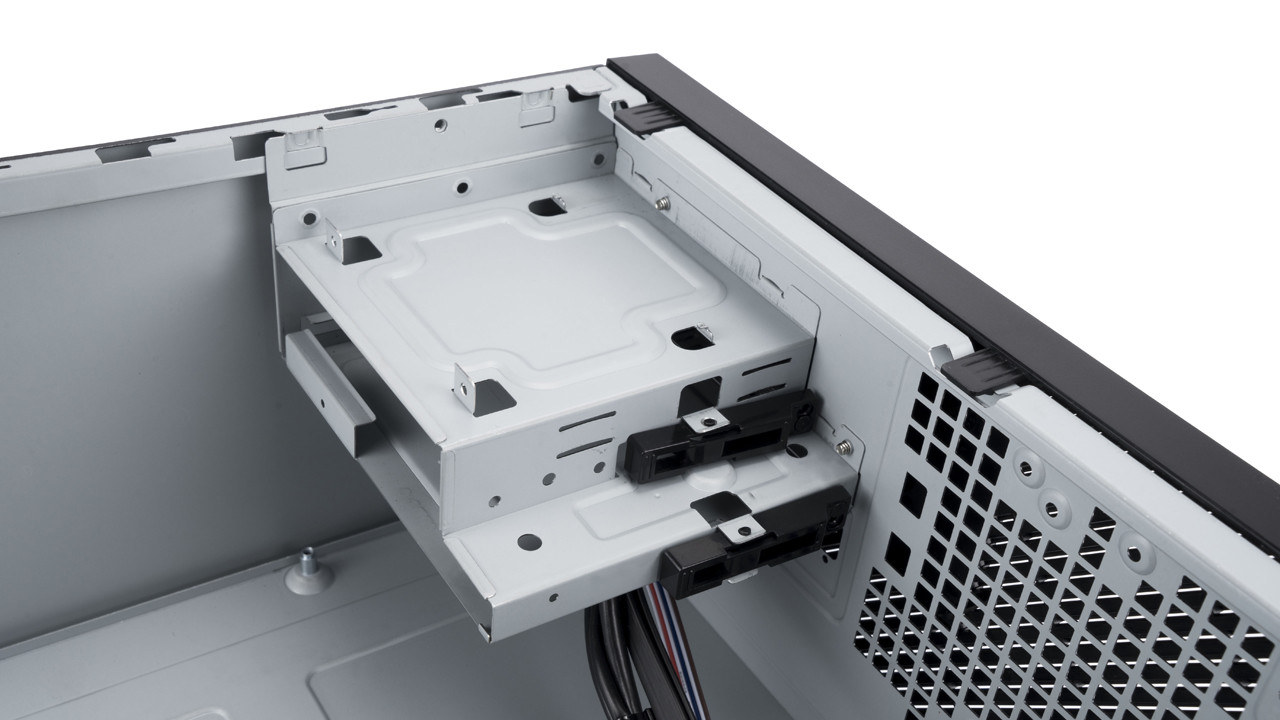

External Drive Bays

‧Slim ODD Bay x 1 (9.5mm Thickness)

‧3.5” HDD x 1

Internal Drive Bays

‧2.5” x 1

3.5” x 1

or 2.5” x 2

or 2.5” x 1 + 90mm Front Fan x 1

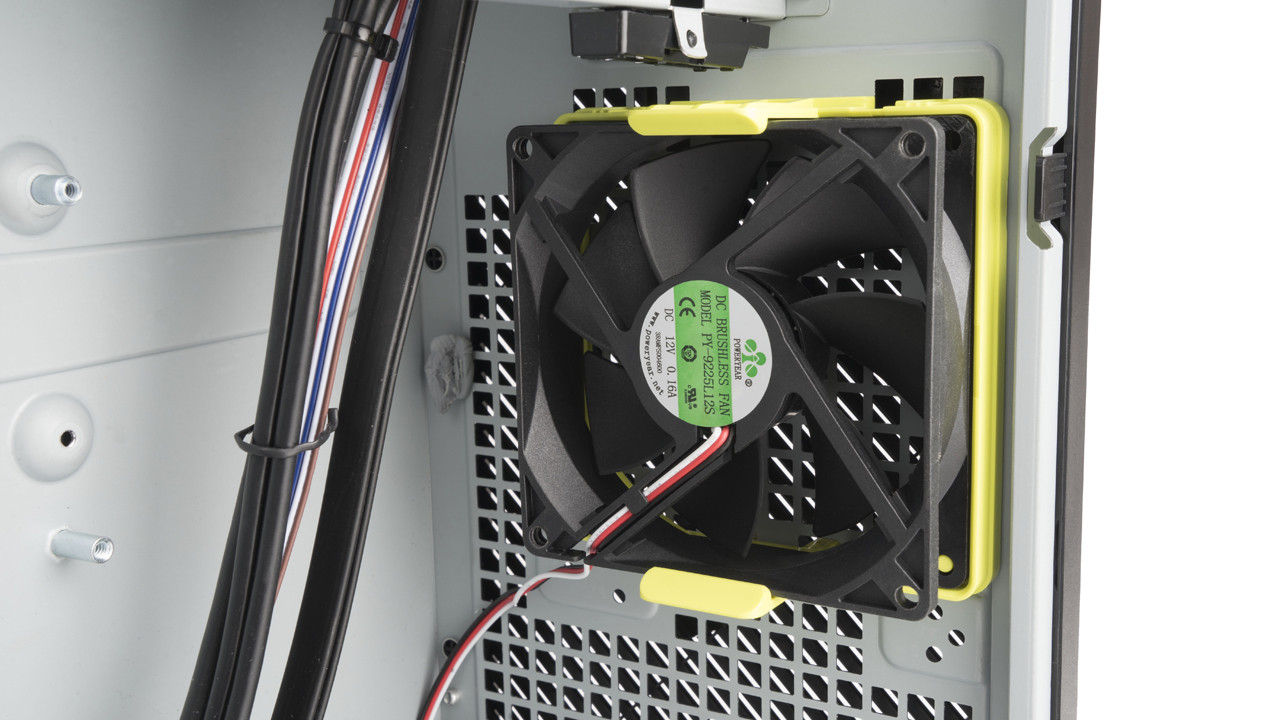

Excellent Thermal Solution

‧Mass Ventilation Area

‧90mm Front Fan x 1
with Tool-Free Fan Holder (Optional)
* Occupied 1 x 2.5” HDD space at the front

‧90mm Rear Fan (Optional)

Optional

‧3.5” to 2.5” HDD/SSD Bracket Supports x 2
Optional 60 mm Fan x 1
(60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)

‧Internal Speaker
‧Chassis Intrusion Switch

Recommended Power Supply
