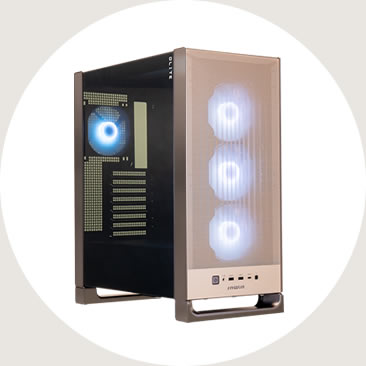

Featuring a wavy-patterned mesh front panel, the DLITE is designed as a vertical veil that subtly reveals and enhances the case’s internal structure. Accented by InWin’s signature hair-brushed 3mm aluminium strip, exuding refined elegance. Available in stylish Mocha Bronze and Lilac Silver variants, its unified structure and streamlined layout deliver a visually cohesive, high-quality build. The DLITE infuses clean vibes and clever design into your daily life.
This streamlined ATX chassis supports up to 8 PCIe slots, offering full compatibility with both mainstream and high-end GPUs, including the latest graphics cards. Its flexible layout is designed to highlight top-tier components, balancing visual appeal with structural integrity.
DLITE is compatible with InWin’s riser cable bracket, allowing you to showcase your graphics card with both horizontal and vertical installation options.
* PCIe modular bracket is not included in the package; availability may vary by region.
This mid-tower case supports ATX motherboards and is fully compatible with the latest back-connector designs, enabling cleaner cable management and a more efficient build process. Perfectly aligned with the evolving needs of modern PC builders.
* Supports ASUS, GIGABYTE and MSI Back-Connector motherboards.
Supporting up to 12 fans and 360 mm radiators, it offers versatile cooling options to maximize airflow and thermal efficiency. DLITE is ready to power your high-performance setup.
Pre-installed XM120 Fans: 3 × Front, 1 × Rear
Learn More
| Model | XM120 |
|---|---|
| Colors | Black |
| Fan Size | 120 x 120 x 25 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 3W |
| Rated Current | 0.25A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 0.6W |
| ARGB Rated Current | 0.12A |
| Speed Mode | PWM 850 - 1500 RPM |
| Air Flow | 63.83 CFM |
| Air Pressure | 1.29 mm / H2O |
| LED | Addressable RGB |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 30.7 dB(A) |
| Bearing Type | Hydro Bearing |
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|
Despite its compact footprint, the DLITE offers a spacious interior that supports full-sized components, including graphics cards up to 380 mm and power supplies up to 200 mm, with ample space for cable management.
| Model | DLITE |
|---|---|
| Model Number | IW-CS-DLITEBRO-4XM120, IW-CS-DLITEPUR-4XM120 |
| Color | Mocha Bronze, Lilac Silver |
| Case Type | Mid Tower |
| Materials | SPCC, Tempered Glass, Aluminium, ABS |
| M/B Compatibility | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 8 x PCIe |
| Maximum Compatibility | GPU Length: 380 mm CPU Heatsink Height: 165 mm |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio (CTIA - SPK/MIC) LED Lighting Control Switch Power Button |
| Internal Drive Bays | 2 x 3.5" & 2 x 2.5" |
| Thermal Solution Compatibility | Air Cooling Fans: Front: 3 x 120 mm (InWin XM120 Pre-installed) Top: 3 x 120 / 2 x 140 mm Rear: 1 x 120 / 140 mm (InWin XM120 Pre-installed) Bottom: 2 x 120 mm (screws required≧ 25mm) Side: 3 x 120 mm Water Cooling Radiator: Front: 1 x 360 mm Top: 1 x 280 / 360 mm Rear: 120 mm |
| Power Supply Compatibility | PSII : ATX12V - Length up to 200 mm |
| Product Dimensions (L x W x H) |
441 x 245 x 528 mm 17.4 x 9.6 x 20.8" |
| Package Dimensions (L x W x H) |
593 x 323 x 550 mm 23.4 x 12.7 x 21.7" |
| Net Weight | 9.25 kg / 20.4 lb |
| Gross Weight | 10.7 kg / 20.6 lb |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
