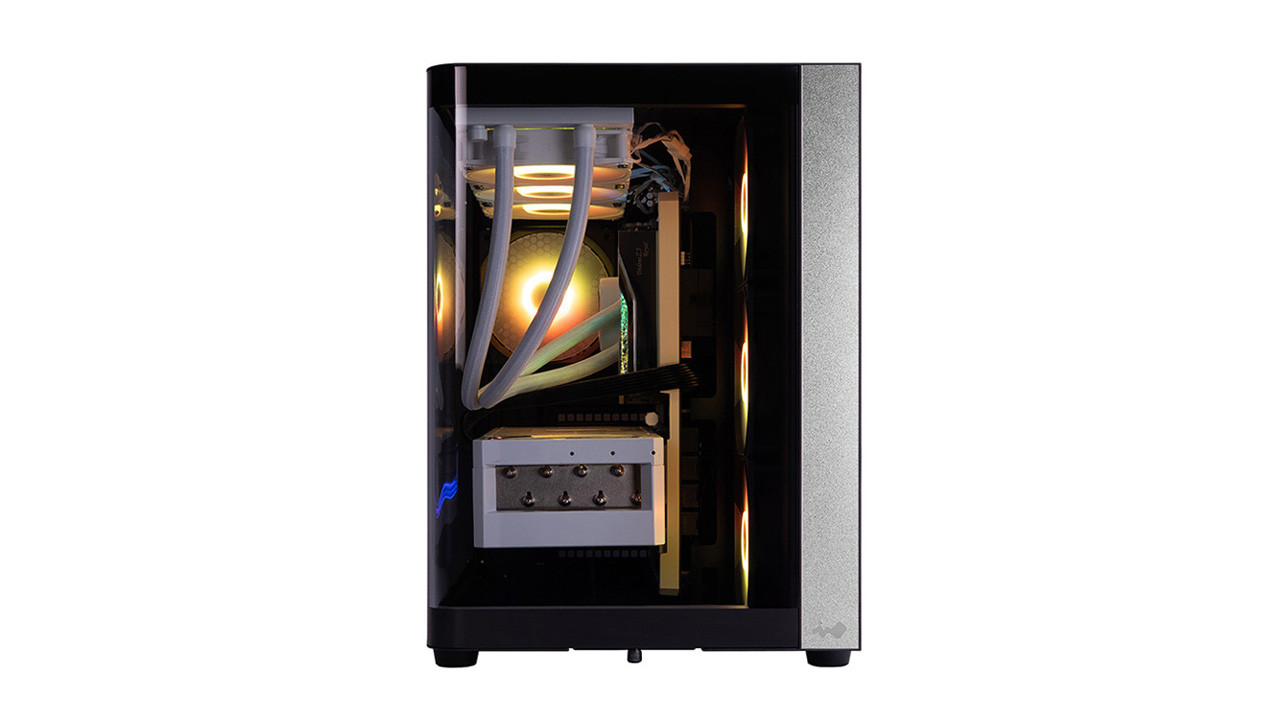

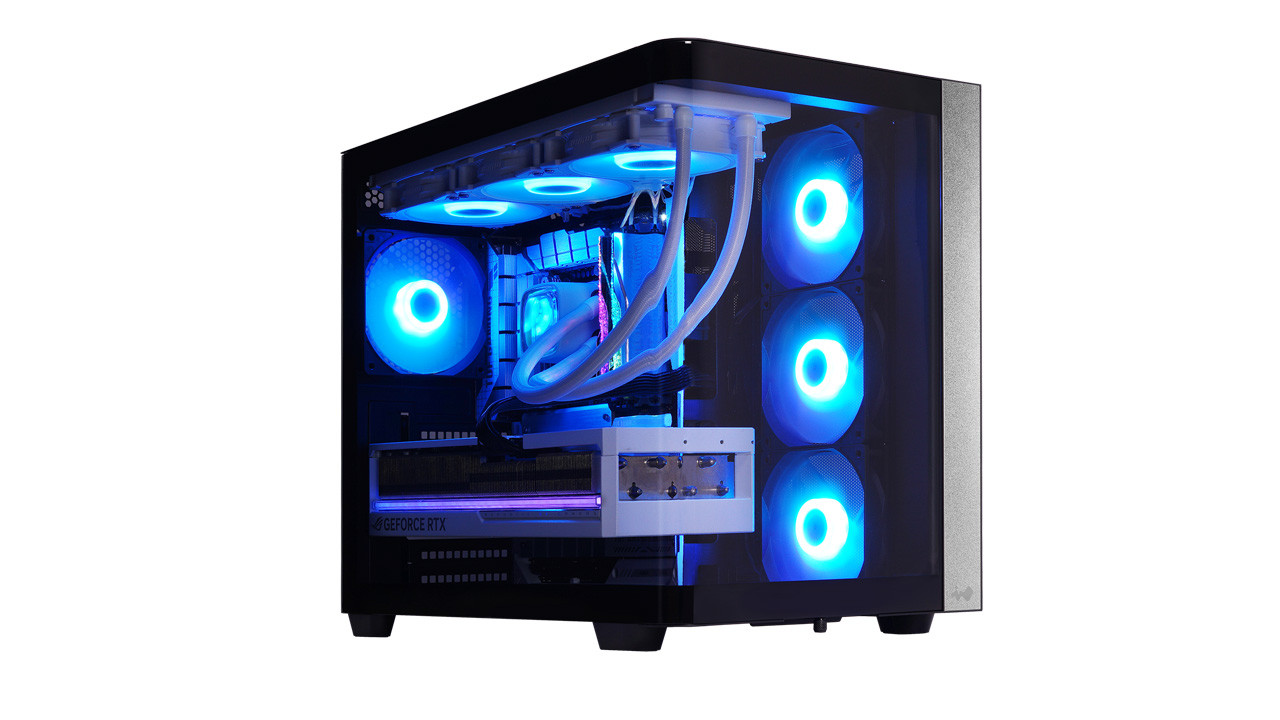

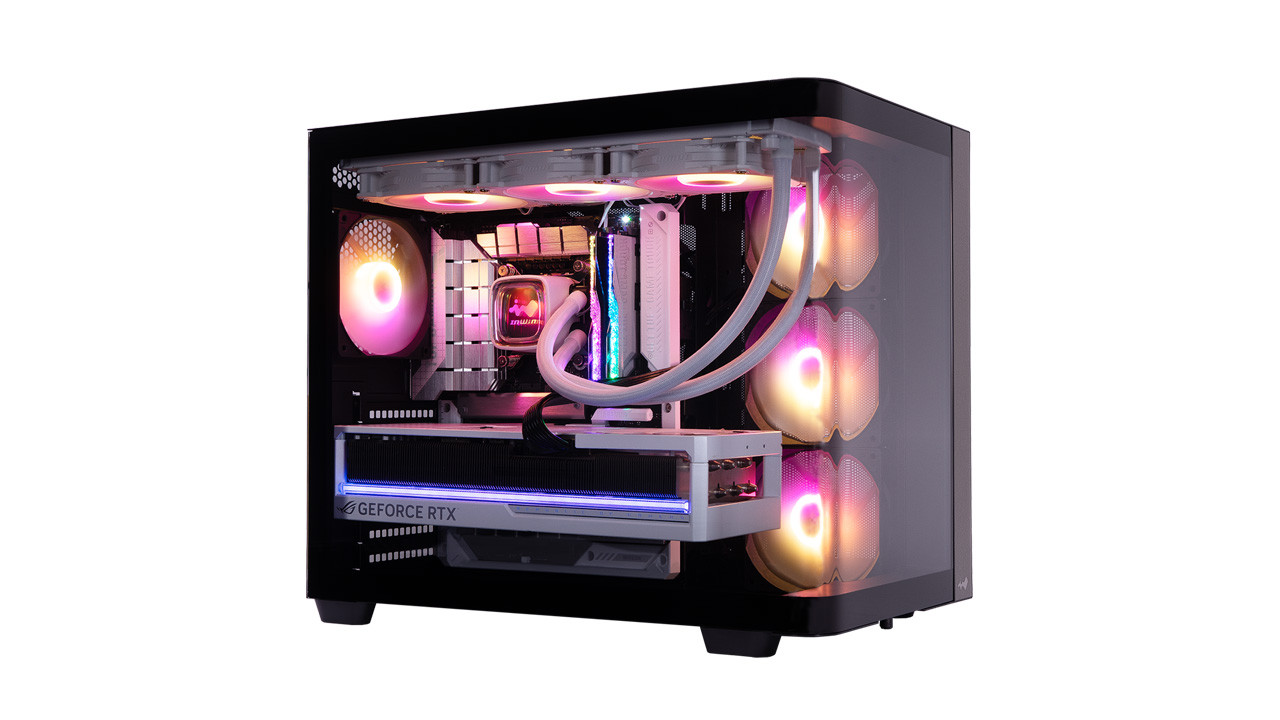

Upgrade your build with a panoramic curved glass panel that slides forward for safer removal and a clean, frameless aesthetic. Paired with a silver-accented matte front strip, the W31 embodies elegance to the PC building experience.

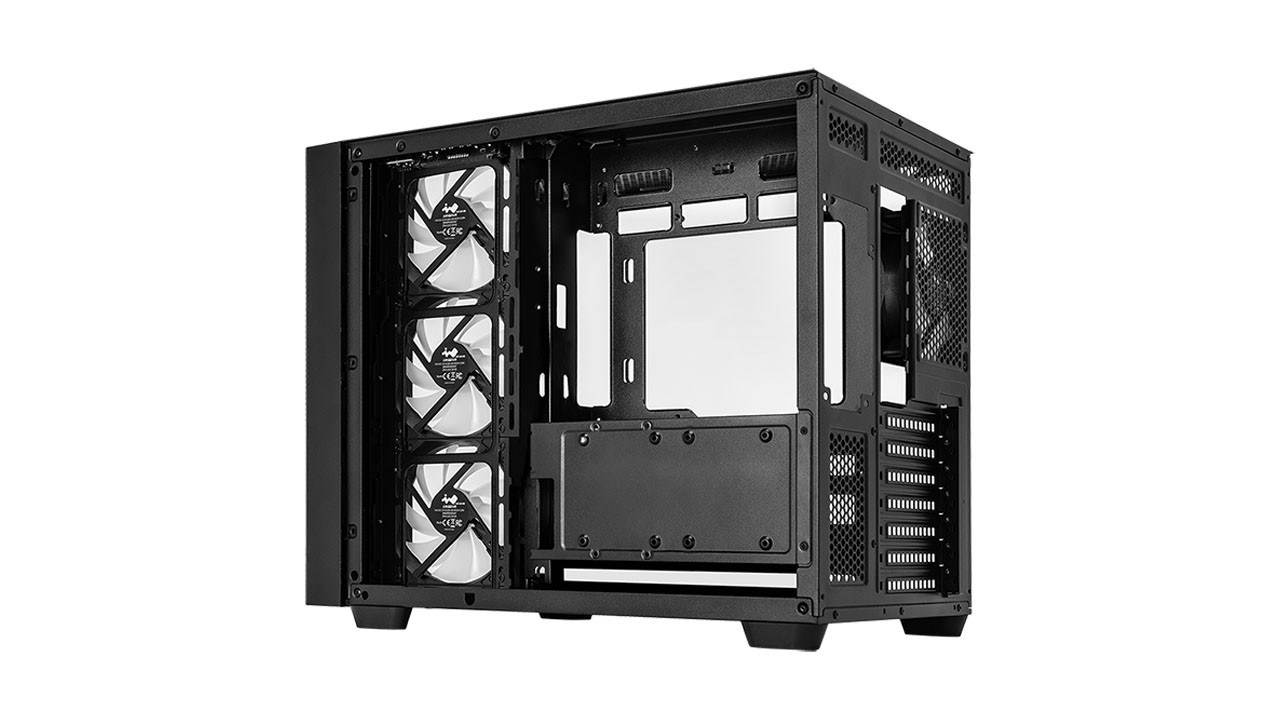

Worried about overheating under high workloads? The Dual chamber structure isolates the PSU and the GPU to maximize cooling performance and maintain system stability.
Built-in cable routing holes and a spacious 45 mm cable routing area keep wires neat and organized.
The W31’s modular features support mainstream hardware standards, accommodating high-performance GPUs up to 410mm, PSUs up to 240mm, and 7 expansion slots for versatile builds.
* Supports ASUS, GIGABYTE and MSI Back-Connector motherboards.

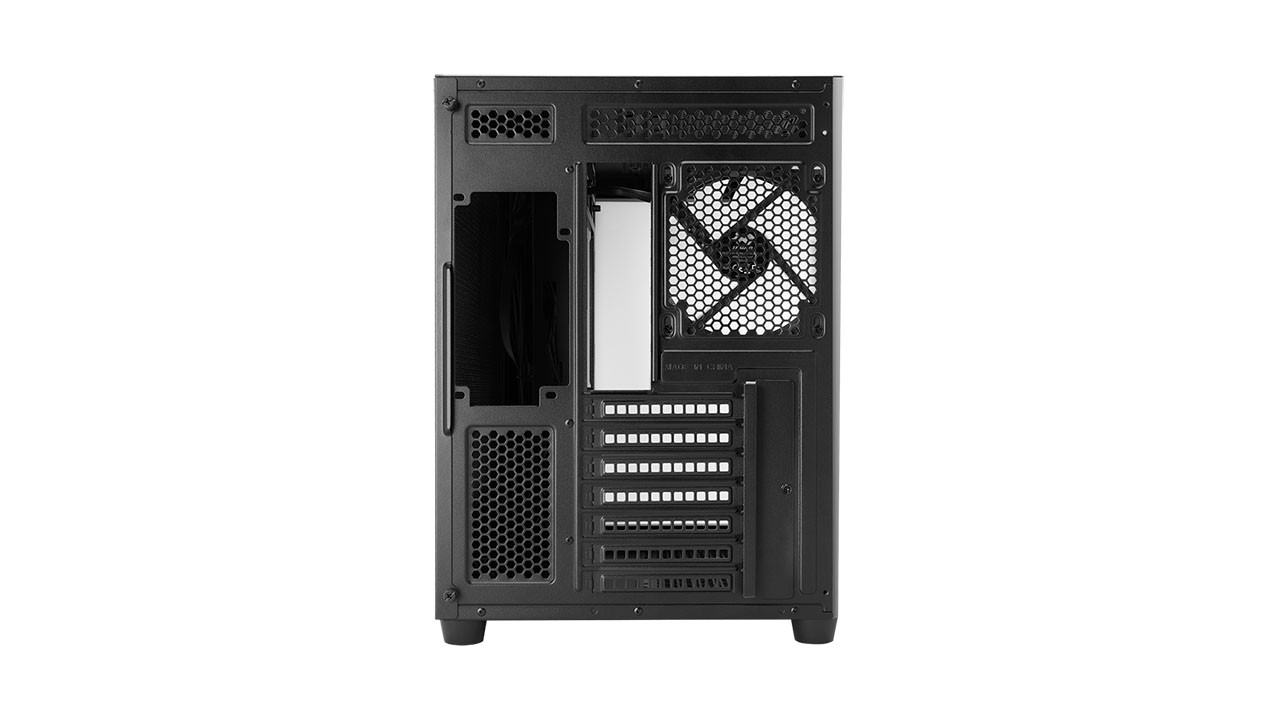

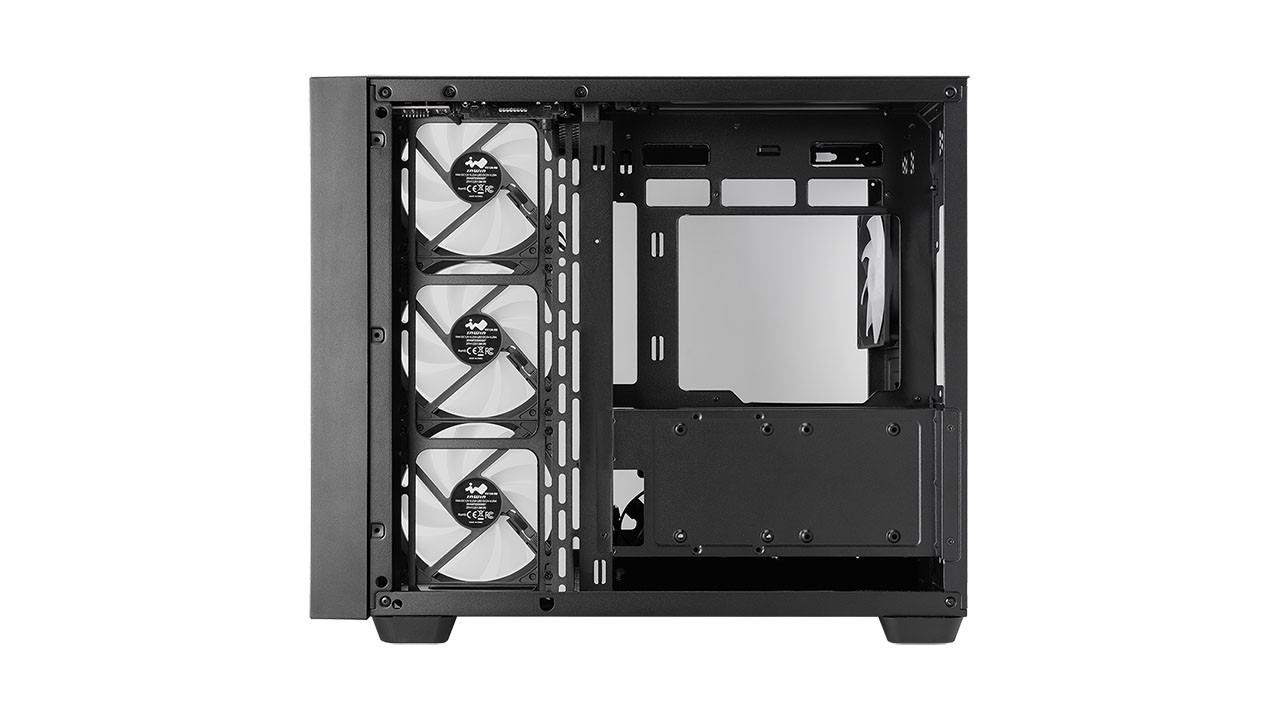

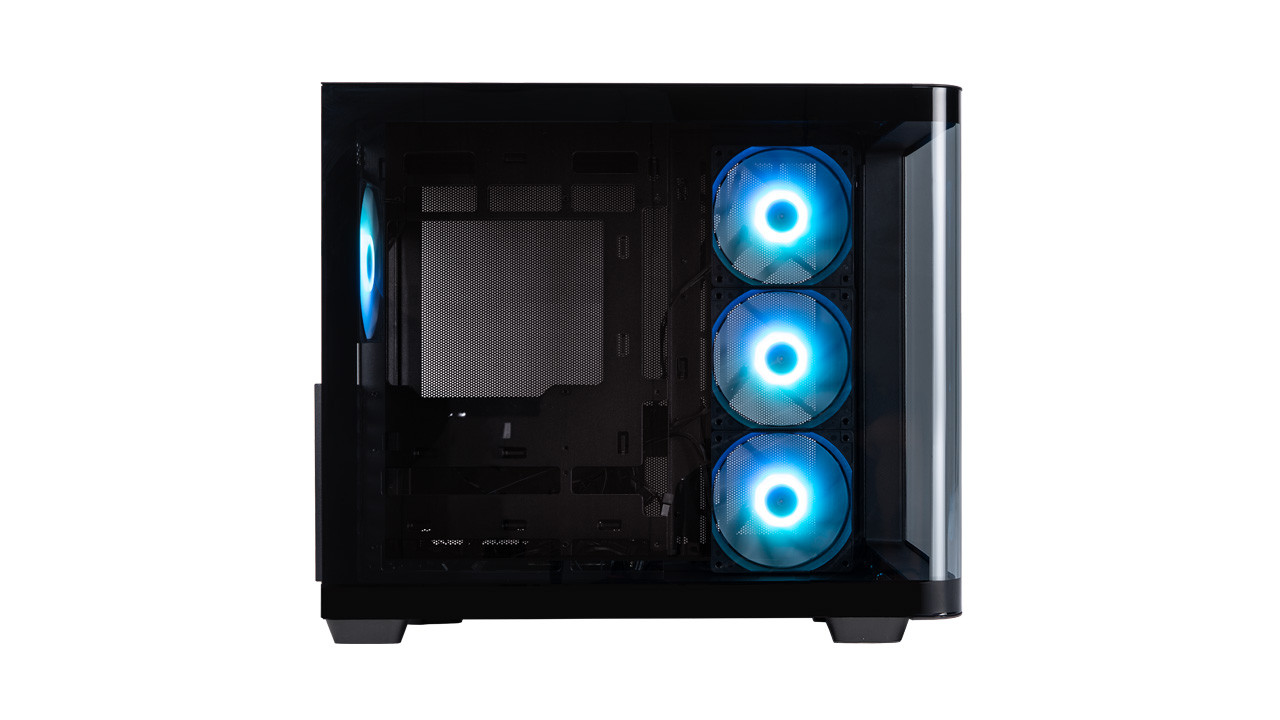

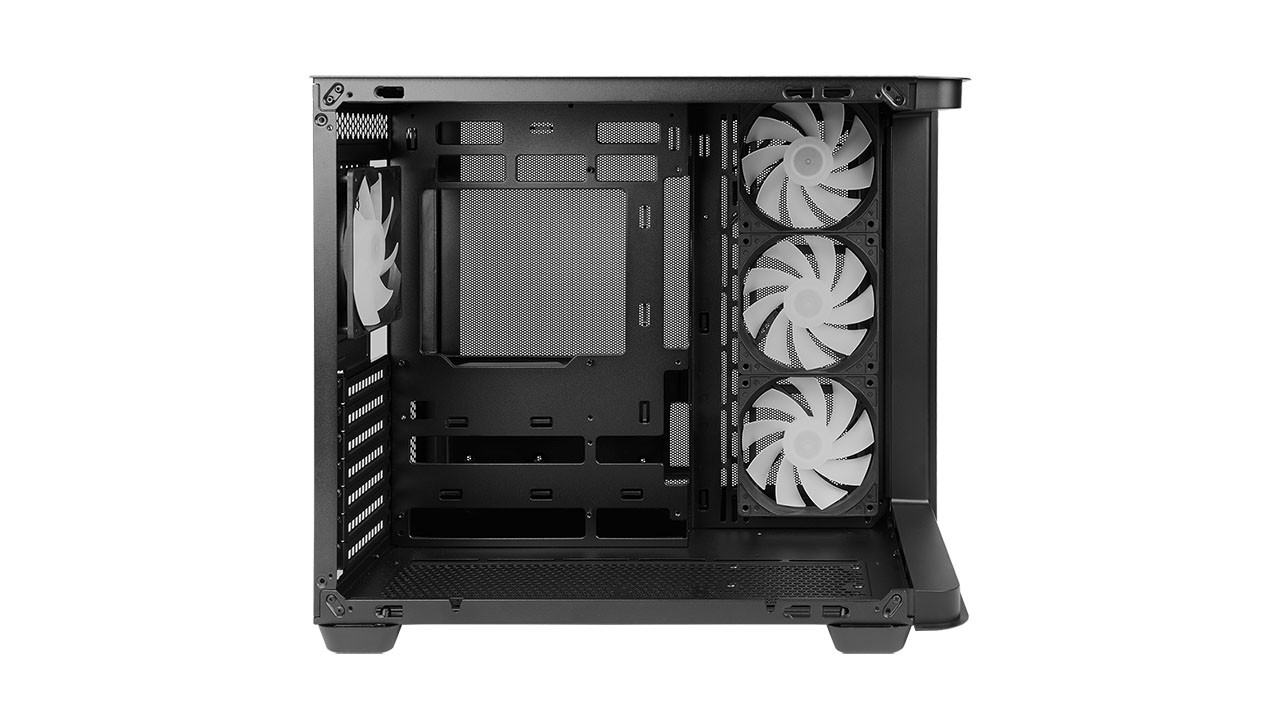

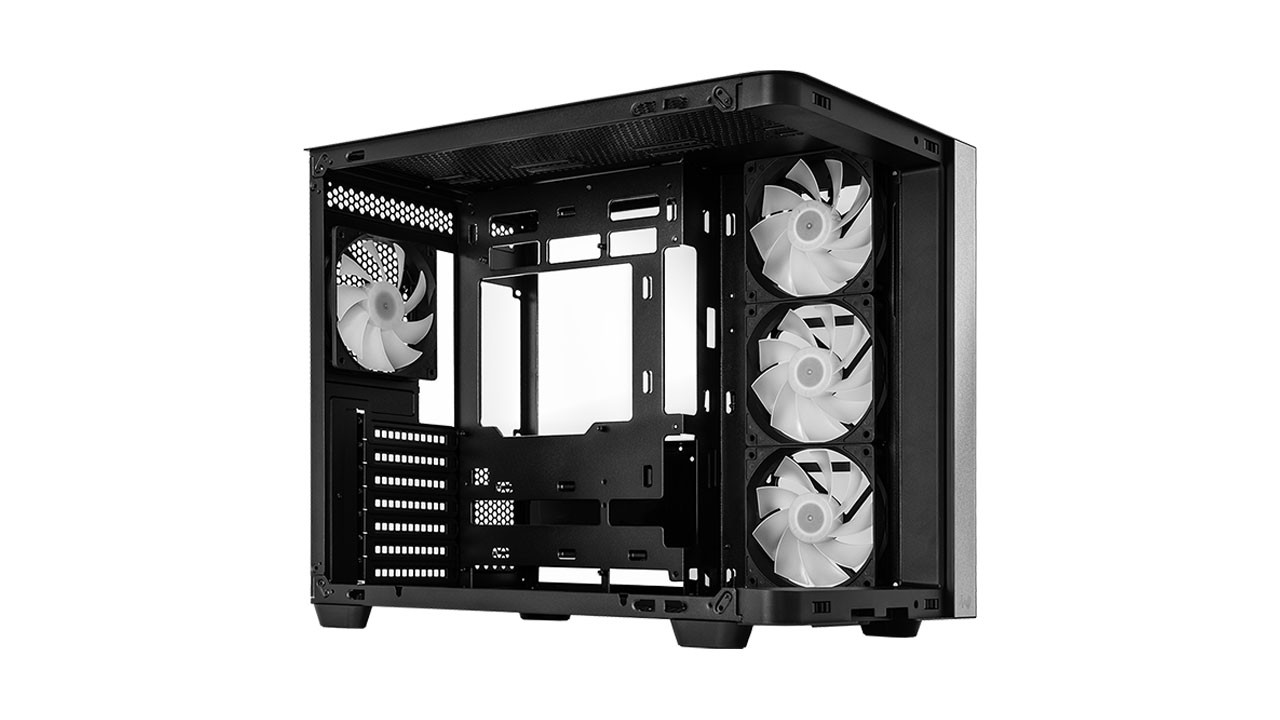

Three VORTEX reverse-blade ARGB fans on the side pull in cool air with vivid lighting, while a rear fan exhausts heat to finish the cycle.

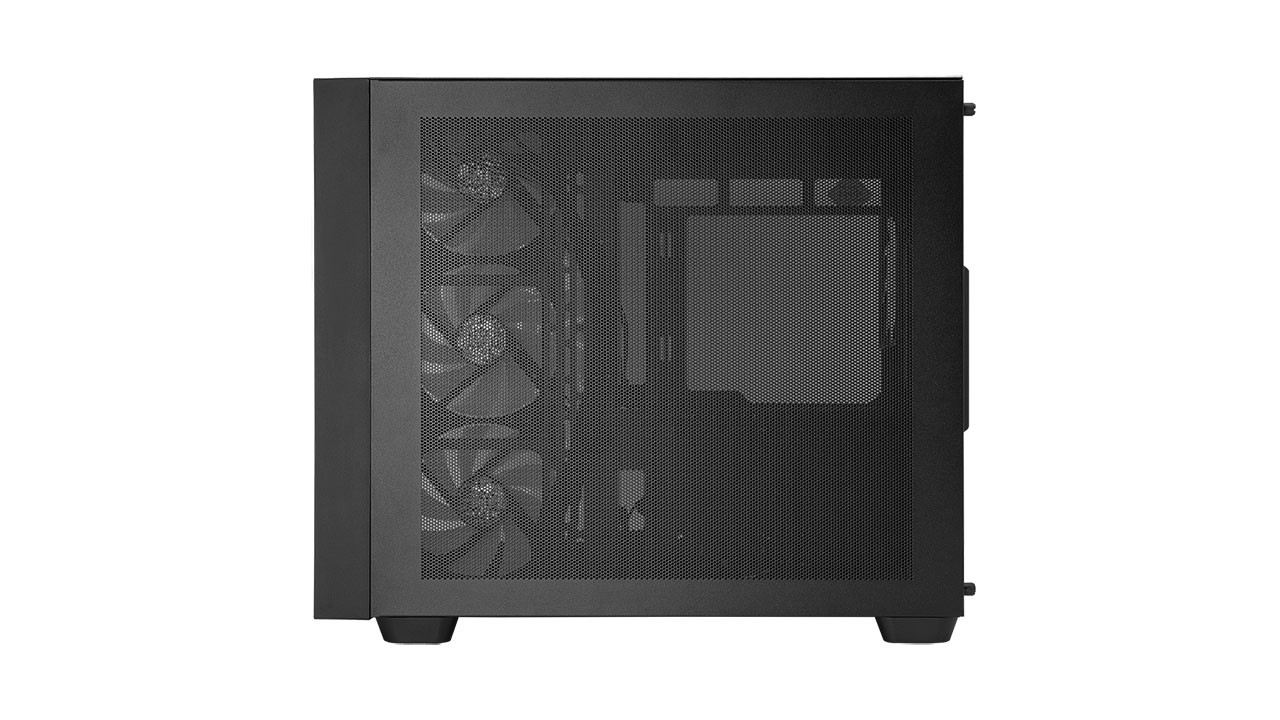

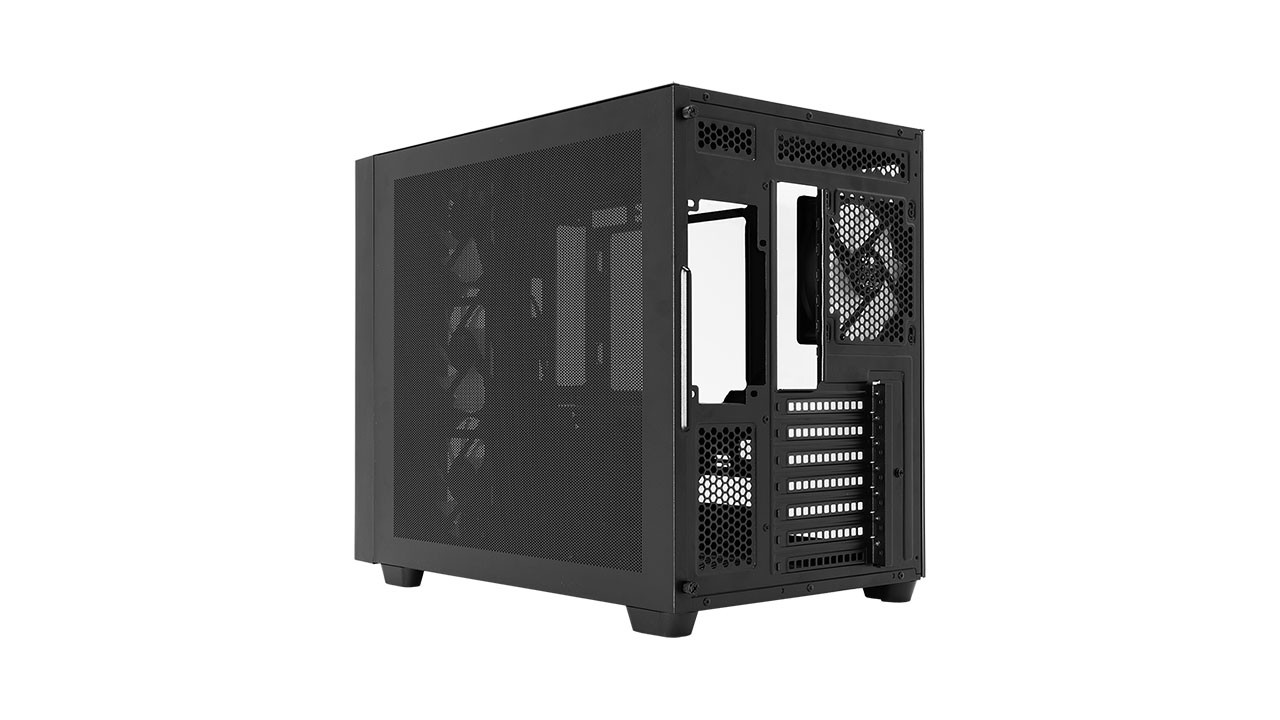

Supports up to ten fans and 280/360 mm radiators. The W31 delivers robust cooling with a precise PWM controller and full-mesh side panel.
Learn More
The VORTEX fans have two variants, Regular or Reverse blade options for versatile airflow and full ARGB visibility no matter which cooling direction. Intelligent PWM cooling adjusts speed for optimal performance and striking visuals.
| Model | VORTEX | ||
|---|---|---|---|
| Style | Regular Blade | Reverse Blade | |
| Model Number | IW-FN-VX120-1PK | IW-FN-VX120-RB-1PK | |
| Color | Black | ||
| Fan Size | 120 x 120 x 25 mm | ||
| Materials | PBT, PC | ||
| Rated Voltage | DC 12V | ||
| Rated Power | 2.76W | ||
| Rated Current | 0.23A | ||
| ARGB Rated Voltage | DC 5V | ||
| ARGB Rated Power | 1.45W | ||
| ARGB Rated Current | 0.29A | ||
| Speed Mode | PWM 600 - 1600 RPM | ||
| Air Flow | 66.37 CFM | 63.89 CFM | |
| Air Pressure | 1.4 mm / H2O | 1.05 mm / H2O | |
| LED | Addressable RGB | ||
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | ||
| Noise Level | 31.7 dB(A) | 37.2 dB(A) | |
| Bearing Type | Hydro Bearing | ||
| * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. |
|||
Both glass and metal side panels feature a thumbscrew design, enabling effortless installation and easy maintenance, while giving off a clean, minimalistic aesthetic.

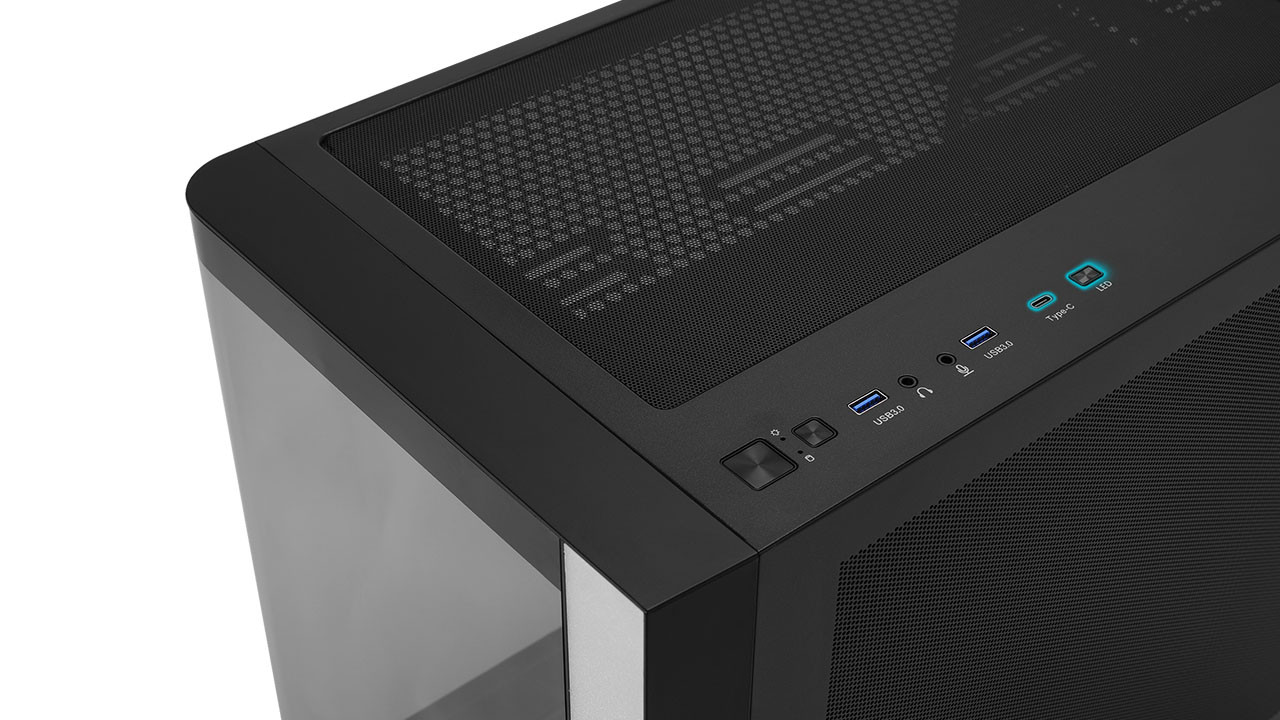

Equipped with two USB 3.2 Gen 1 ports and one 20 Gb/s USB 3.2 Gen 2 Type-C port, delivering high- speed connectivity for your devices
| Model | W31 |
|---|---|
| Model Number | IW-CS-W31BLK-4VX120 |
| Color | Black |
| Case Type | Mid Tower |
| Materials | Tempered Glass, SPCC |
| M/B Compatibility | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7x PCIe |
| Maximum Compatibility | GPU Length: Up to 410mm CPU Heatsink Height: 160 mm |
| I/O Ports | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1 HD Audio Reset Button LED Lighting Control Switch Power Button |
| Internal Drive Bays | 1 x 3.5" & 2 x 2.5" 1 x 3.5" / 1 x 2.5" |
| Thermal Solution Compatibility | Air Cooling Fans: Top: 3 x 120 mm / 2 x 140mm Rear: 1 x 120 mm (Pre-installed VX120) Side: 3 x 120 mm / 2 x 140 mm (Pre-installed VX120-RB x 3) Bottom: 3 x 120 mm Water Cooling Radiators: Top: 1 x 280 / 360 mm Rear: 1 x 120 mm Bottom: 1 x 240 / 360 mm Side: 1 x 240 / 280 mm |
| Power Supply Compatibility | PSII : ATX12V - Length up to 240 mm |

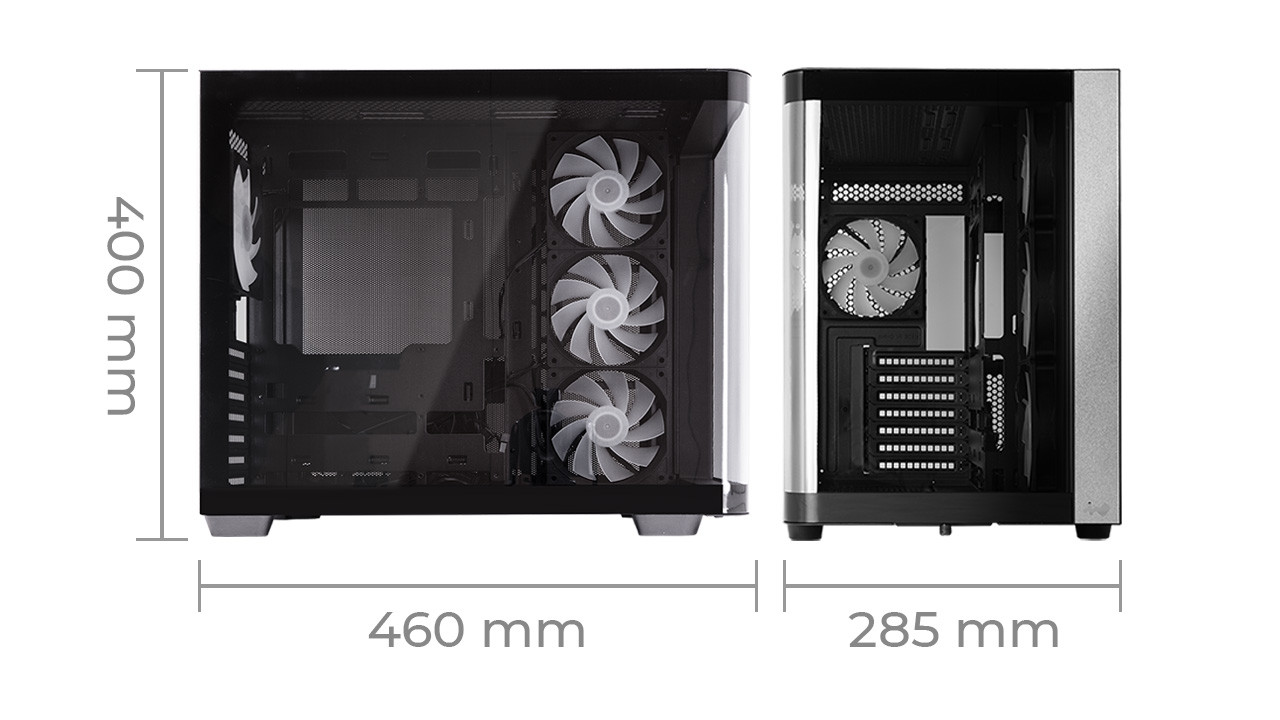

| Product Dimensions (L x W x H) |
460 x 285 x 400 mm 18.11 x 11.22 x 15.75" |
| Package Dimensions (L x W x H) |
455 x 378 x557 mm 17.91 x 14.88 x 21.93" |
| Net Weight | 7.07 kg / 15.59 lbs |
| Gross Weight | 8.67 kg / 19.11 lbs |
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|
