4 Pin Sideband Signals
Each 12V pin support up to 9.5A
The connector supports up to 450w
Ground Safety Pin
ATX3.0 & PCIe 5.0 Ready
The VE Series meets the newest generation of Intel’s PSDG (power supply design guide), ATX 3.0. The PSU includes PCIe 5.0, 16-pin (12VHPWR) connector with high-quality 16 AWG cable. Power is ready for all high-performing future PCI-E 5.0 graphics cards.
Smart Temperature-Controlled FDB Fan with Zero RPM Mode
Under Zero RPM Mode, the 135 mm FDB fan will stop rotating, providing an ultra-quiet experience. If the PSU’s temperature reaches 50°C, the fan will automatically operate to dissipate the heat. This will provide a stable and tranquil environment for users.
80 PLUS® Gold Certified for High Efficiency
The VE Series is an 80 PLUS® Gold certified power supply that delivers up to 90% conversion efficiency, which can generate less heat, effectively lowering energy consumption and noise.
Fully Modular with High Quality Flat Cables
The fully modular and flexible flat cables allow builders limits the cables present in a PC. Easier cable management results in cleaner builds with better airflow.
Highly Reliable Japanese Aluminium Electrolytic Capacitors
Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan.
5V and 3.3V DC to DC Design
The VE Series is equipped with a DC to DC converter design, that provides a superior dynamic response, and supports a foundation for greater system stability.
The VE Series comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.

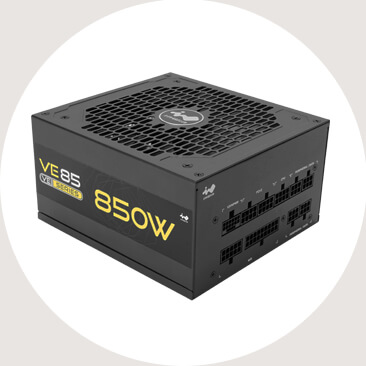

ALL MODELS OF VE SERIES
| Model | VE75 | VE85 | |||
|---|---|---|---|---|---|
| Model Number | IW-PS-VE750W | IW-PS-VE850W | |||
| Total Power | 750W | 850W | |||
| Material | SECC | ||||
| Type | ATX12V V3.0 | ||||
| Cable Management | Fully Modular | ||||
| PFC | Active PFC (> 0.95) | ||||
| Efficiency | 80 PLUS® Gold (Up to 90%) | ||||
| MTBF (Hours) | > 100,000 hrs. | ||||
| AC Input | 100V-240Vac, 10-5A, 50-60Hz | 100V-240Vac, 12-6A, 50-60Hz | |||
| Fan | 135 mm FDB Fan | ||||
| Typical Load Fan Noise(dBA) (50% Loading) |
< 25dBA | ||||
| Operating Temperature Range (°C) | 0~40 °C | ||||
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | ||||
| Safety Certifications | CB / TUV / cTUVus / BSMI / RCM / CE / FCC / UKCA | ||||
| Dimensions (L x W x H) | 160 x 150 x 86 mm | ||||
| Package Dimensions (L x W x D) |
355 x 210 x 105 mm | ||||
| Net Weight | 1.6kg | 1.7kg | |||
| Gross Weight | 2.8kg | 2.9kg | |||
| Warranty | 5 Years | ||||
| Connector | 24 Pin Motherboard | 1 | |||
| 8 (4+4) Pin CPU | 2 | ||||
| 8 (6+2) Pin PCI-E | 4 | ||||
| 12VHPWR | 1 | ||||
| 4 Pin Peripheral | 3 | ||||
| SATA | 9 | ||||
| Floppy | 1 | ||||
| * InWin products comply with RoHS regulations * Specifications may vary based on different regions |
|||||
|
Model
|
DC OUTPUT | +12V | +5V | +3.3V | -12V | +5VSB | Total Power |
|---|---|---|---|---|---|---|---|
|
VE75
|
AC INPUT
|
100V-240Vac, 10-5A, 50-60Hz
|
|||||
|
Max. Output Current
|
62.5A
|
20A
|
20A
|
0.3A
|
3A
|
750W | |
|
Max. Combined Power
|
750W
|
100W
|
3.6W
|
15W
|
|||
| VE85 |
AC INPUT
|
100V-240Vac, 12-6A, 50-60Hz
|
|||||
|
Max. Output Current
|
70.8A
|
20A
|
20A
|
0.3A
|
3A
|
850W | |
|
Max. Combined Power
|
850W
|
100W
|
3.6W
|
15W
|
|||
