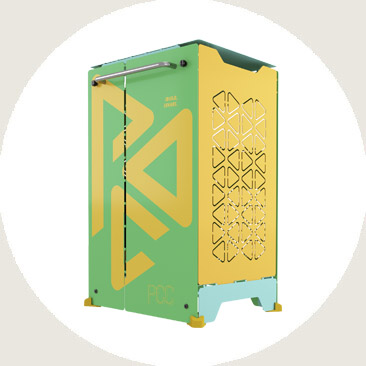

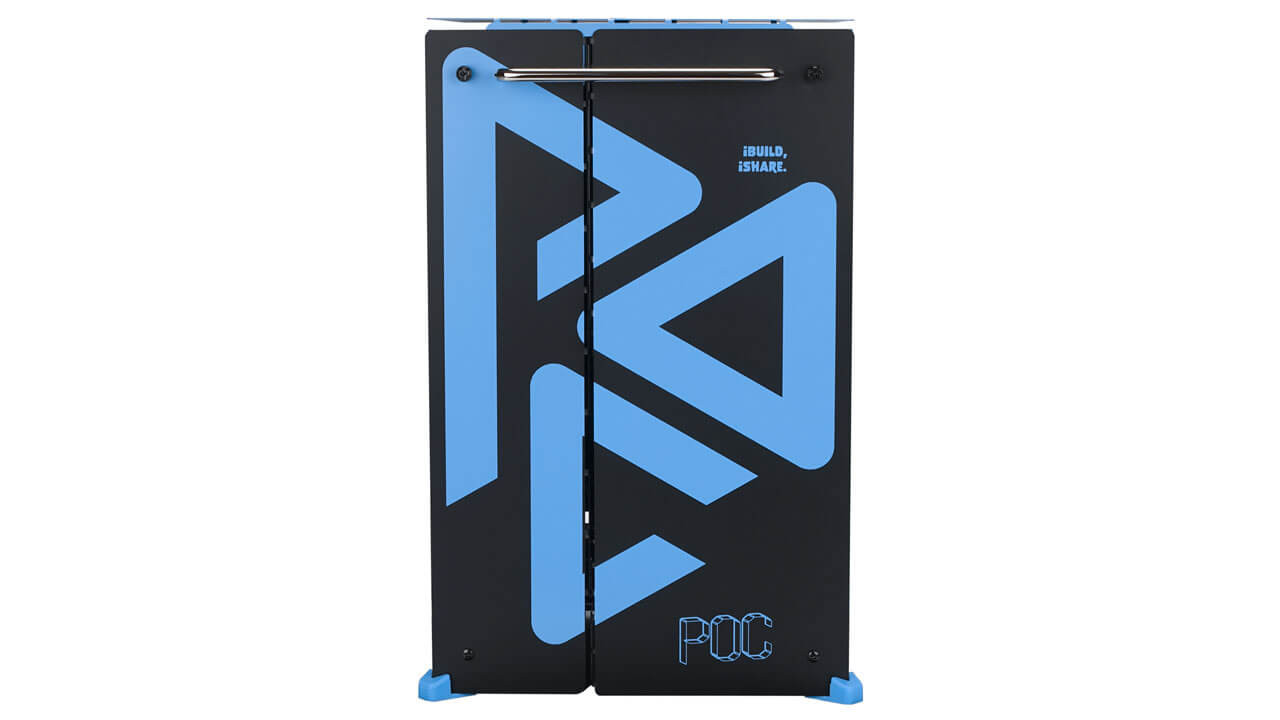

POC

Try True DIY!

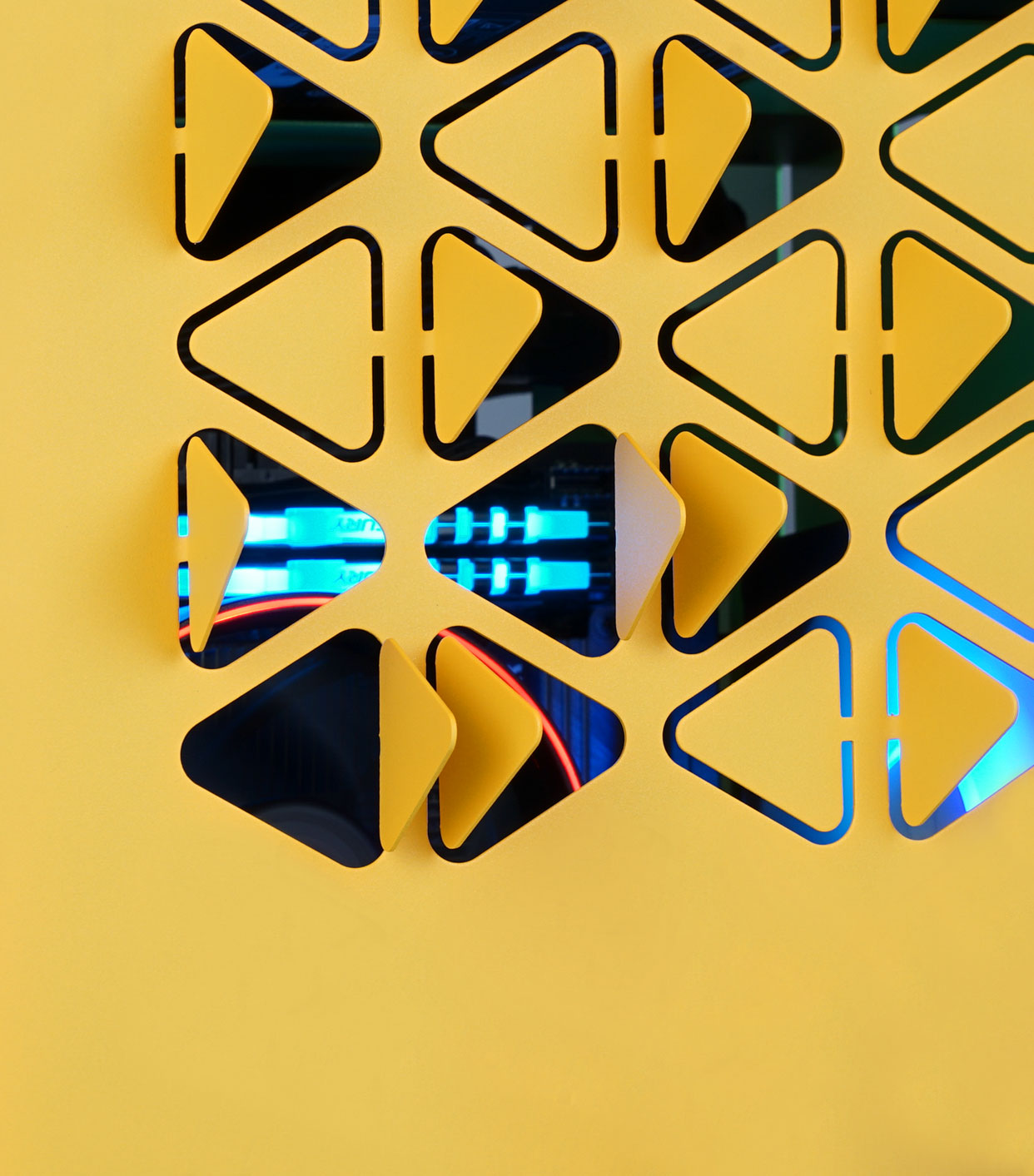

You must have attempted to do origami as a child, right? Now put your skills to the test and enjoy the fun of folding your origami case! Meanwhile, discover the art of dexterity by hand-folding a chassis to its final form.

One in the Chamber

POC’s dedicated GPU chamber is designed to separate the heat. Also, this orientation supports graphics cards up to 346 mm with enough room to fit a 3.5-slot card. POC also comes with a specialized PCI-E 4.0 riser cable.

On a Cool, Moonlit Night

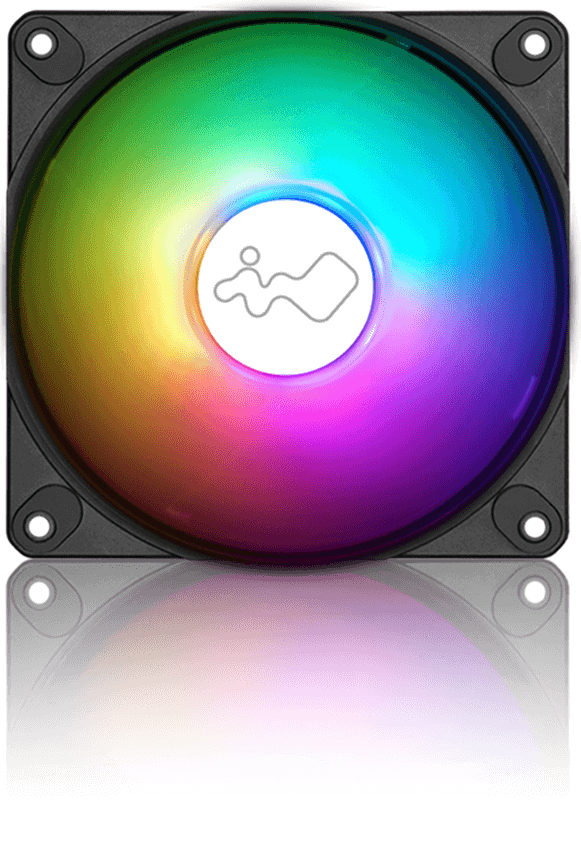

POC’s compact mini-ITX structure is cooled with InWin’s complimentary LUNA AL120 addressable RGB fan.

Learn More

Easy to Ship, Simple to Move & Colorful Too!

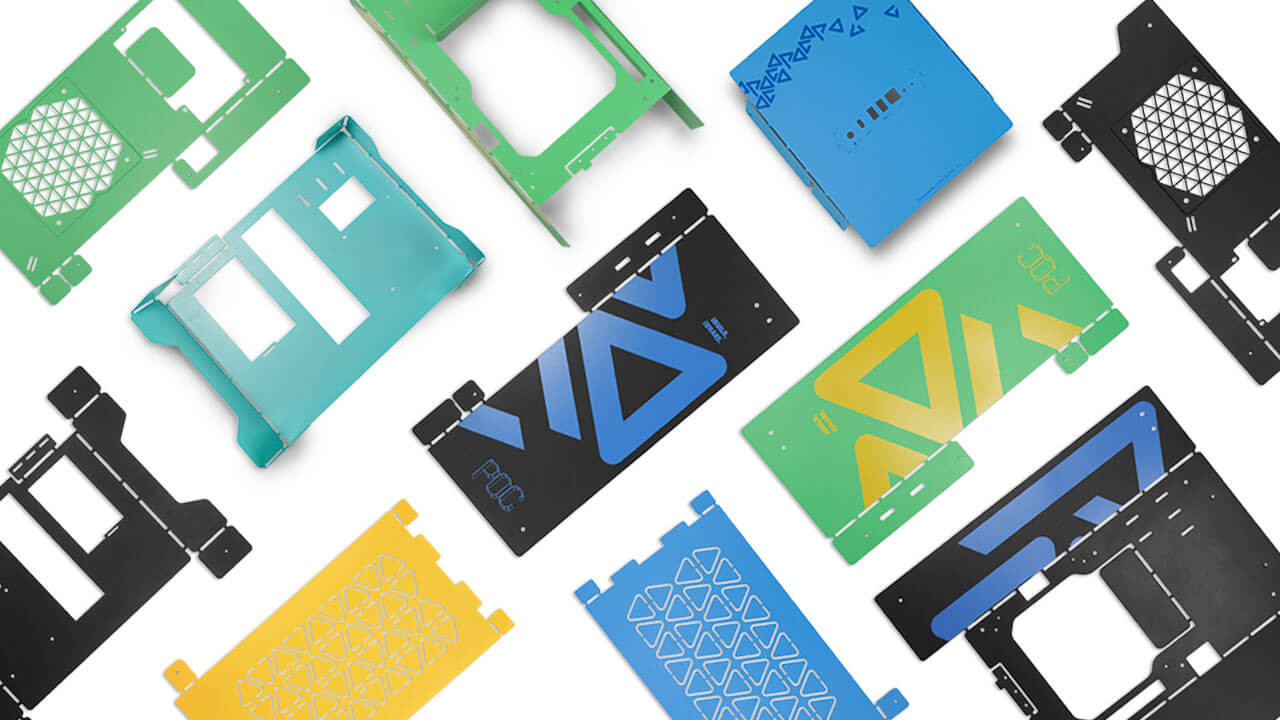

POC consists of 0.8 mm of SECC steel. The 7-piece foldable panels are lightweight and colorful.

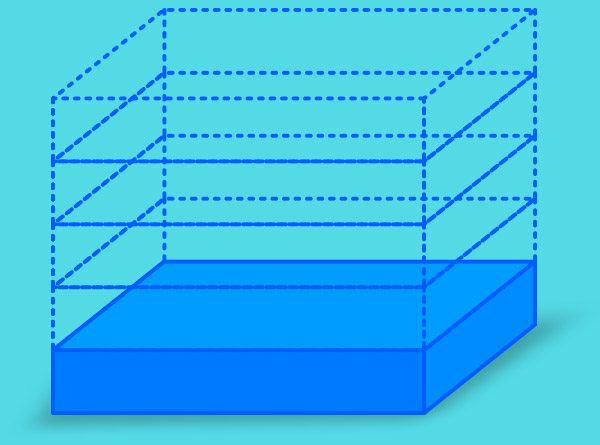

Reduced Packaging

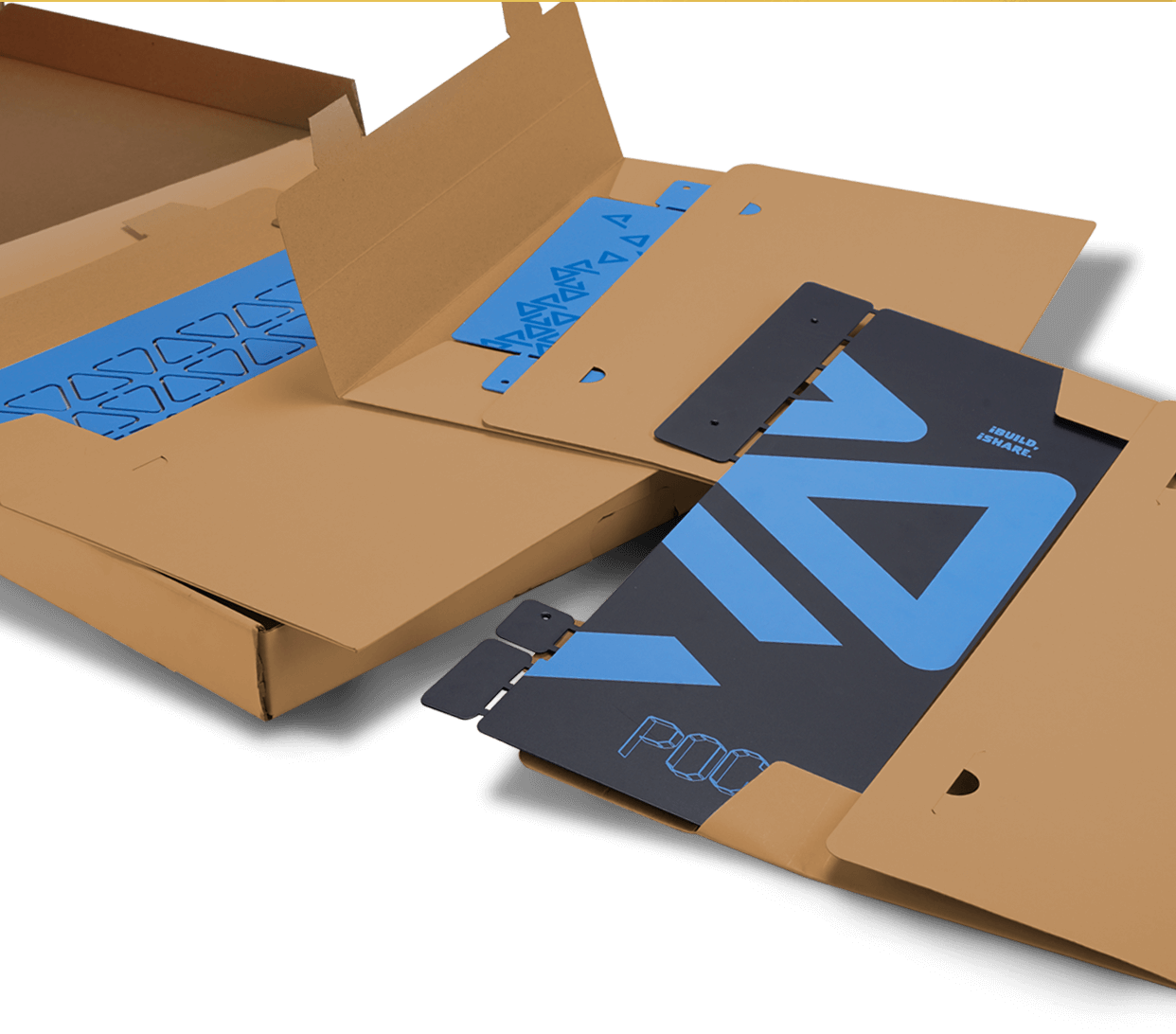

POC consists of a 7-piece case set, tools & accessories and complimentary LUNA AL120 fan and PCI-E 4.0 riser cable. The complete package arrives flat to minimize unnecessary packing materials. Smaller parcels and less of an environmental impact.

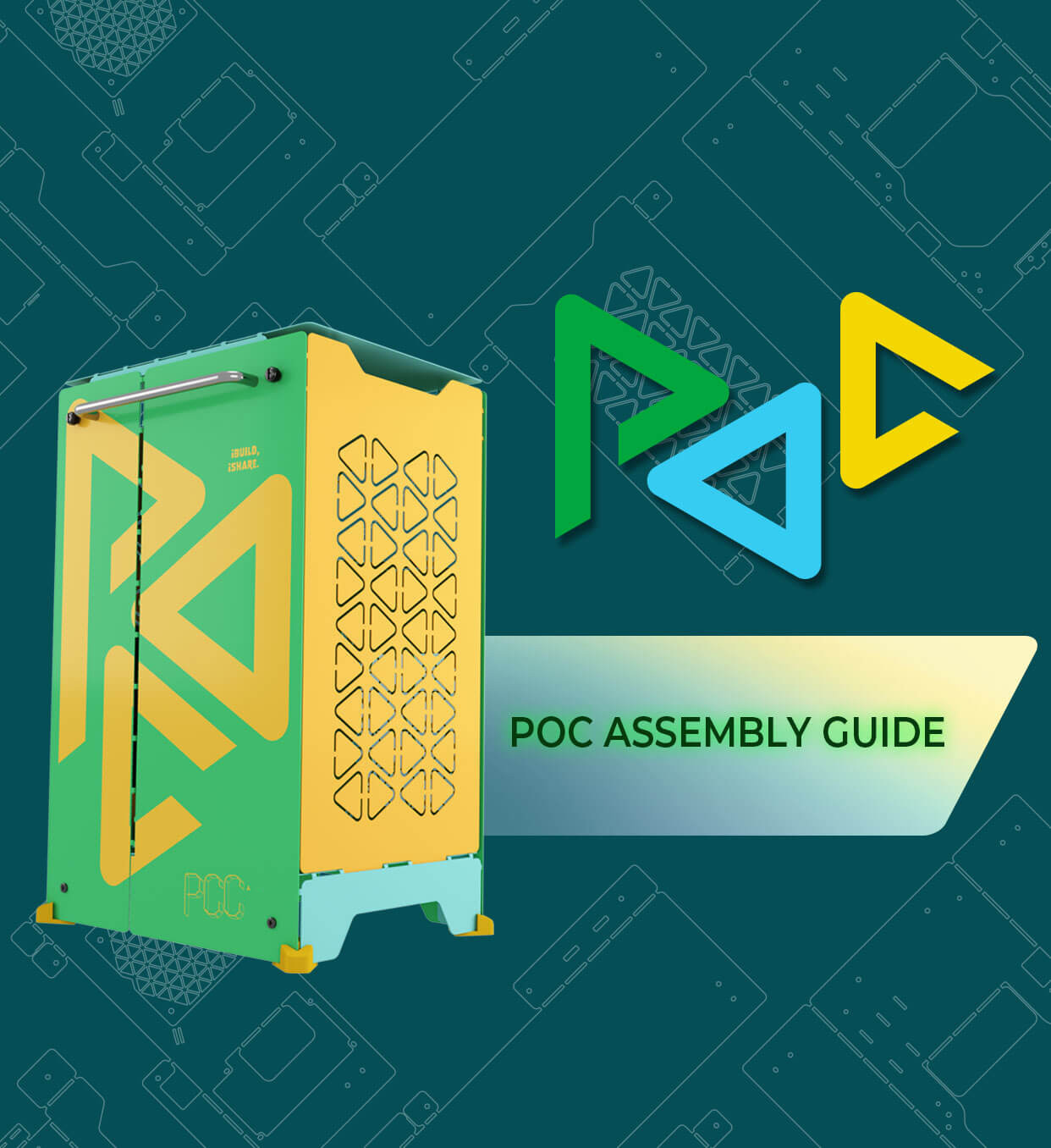

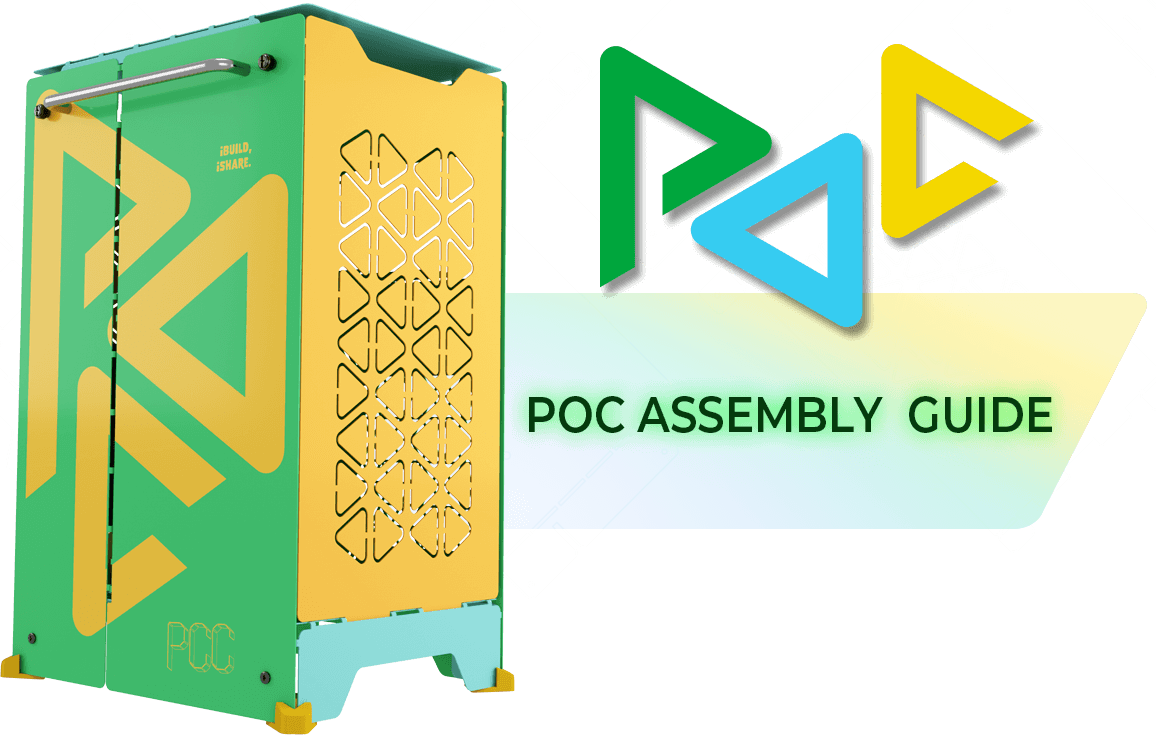

Interactive
Assembly Guide

No more printed instructions expected! The interactive assembly guide shows the photos of the parts and the animations of the assembly.

START

Specifications

Model POC
Model Number IW-CS-POCBLU
IW-CS-POCGRE
Colors Black/Blue, Green/Yellow
Case Type Mini-ITX Tower
Materials SECC
M/B Compatibility Mini-ITX
Expansion Slots 3 x PCI-E
(Supports 3.5-Slot GPU, PCI-E Riser Cable Included)
Maximum Compatibility GPU Length: 346 mm
GPU Thickness: 82 mm
CPU Heatsink Height: 142 mm
I/O Ports 1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1
HD Audio Combo (CTIA – SPK/Mic)
Internal Drive Bays 1 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Rear: 1 x 120 mm
Power Supply Compatibility PSII: ATX12V
- Length up to 160mm

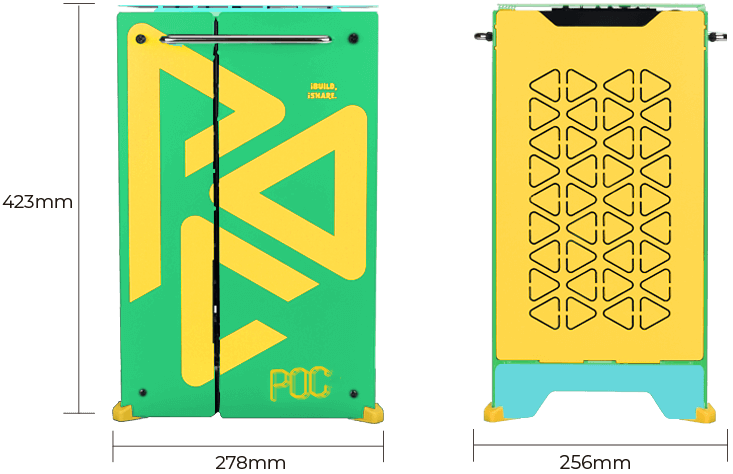

Product Dimensions
(L x W x H)
256 x 278 x 423 mm
10.1 x 10.9 x 16.7"
Package Dimensions
(L x W x H)
449 x 418 x 45 mm
17.7 x 16.4 x 1.78"
Net Weight 4 kg / 8.82 lbs
Gross Weight 5.2 kg / 11.46 lbs
* InWin's products comply with RoHS regulation.
* Specifications may vary based on different regions.
