100us
GPU Power Excursion
100us
Power Excursion
Flex the ATX 3.1 Specs
The PII Series ATX 3.1 fully meets the newest generation of Intel’s PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allows users to game or work with peace of mind.
Ground Safety Pin
Each 12V pin support up to 9.5A
The connector supports up to 600w
4 Pin Sideband Signals
Fully Modular and Safety First!
Up to 600W PCI-E 12V-2x6 Connector
The fully modular and flexible flat cables allow builders to limit cable clutter within a PC. Includes PCI-E 12V-2x6 and a 16-pin connector with high-quality 16 AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU’s powerful performance!

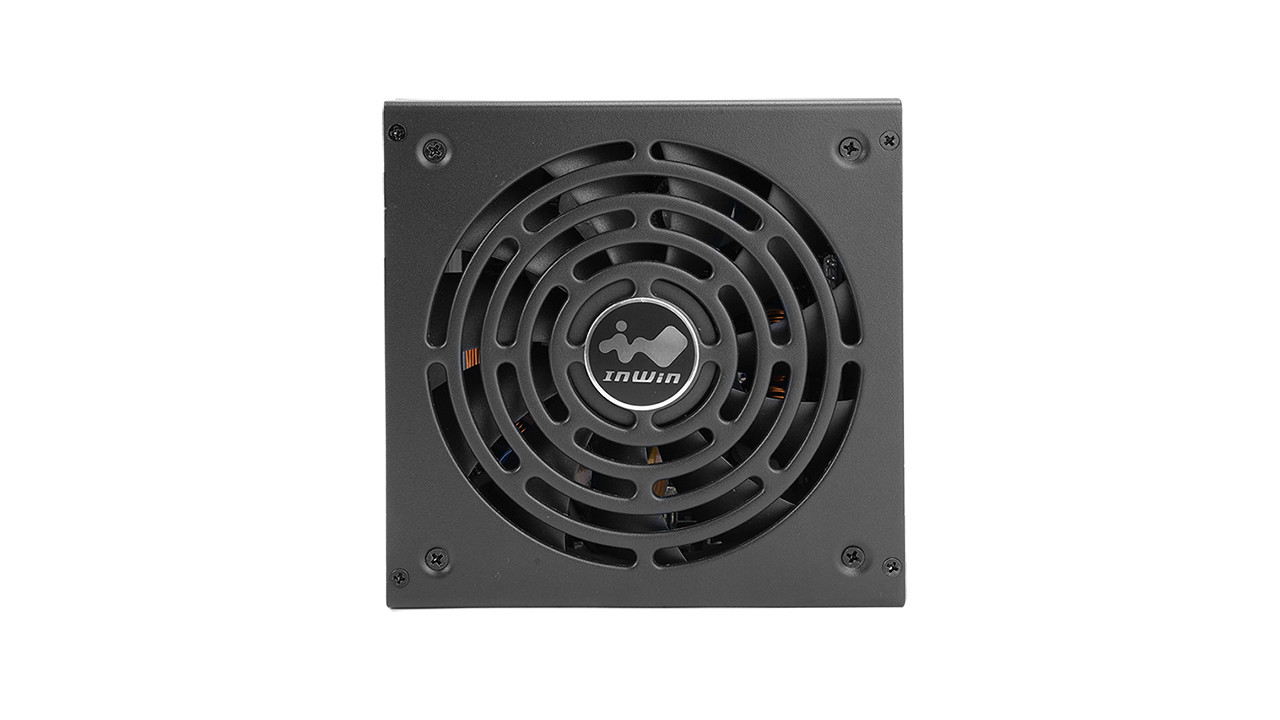

The FDB 135mm fan will switch to hibernation mode automatically once the system’s load is lower than 20%. This will maintain the power supply’s stability and noise levels. The fan will begin to rotate when the system’s load is over 20%.
System Load < 20%
Zero RPM Fan Mode
When the system is under 20% load, the fan will automatically stop running to effectively reduce the system’s noise and lengthen the longevity of the fan.
System Load > 20%
Cooling Mode
When the system is above 20% load, the fan will automatically turn on to maintain optimal cooling.

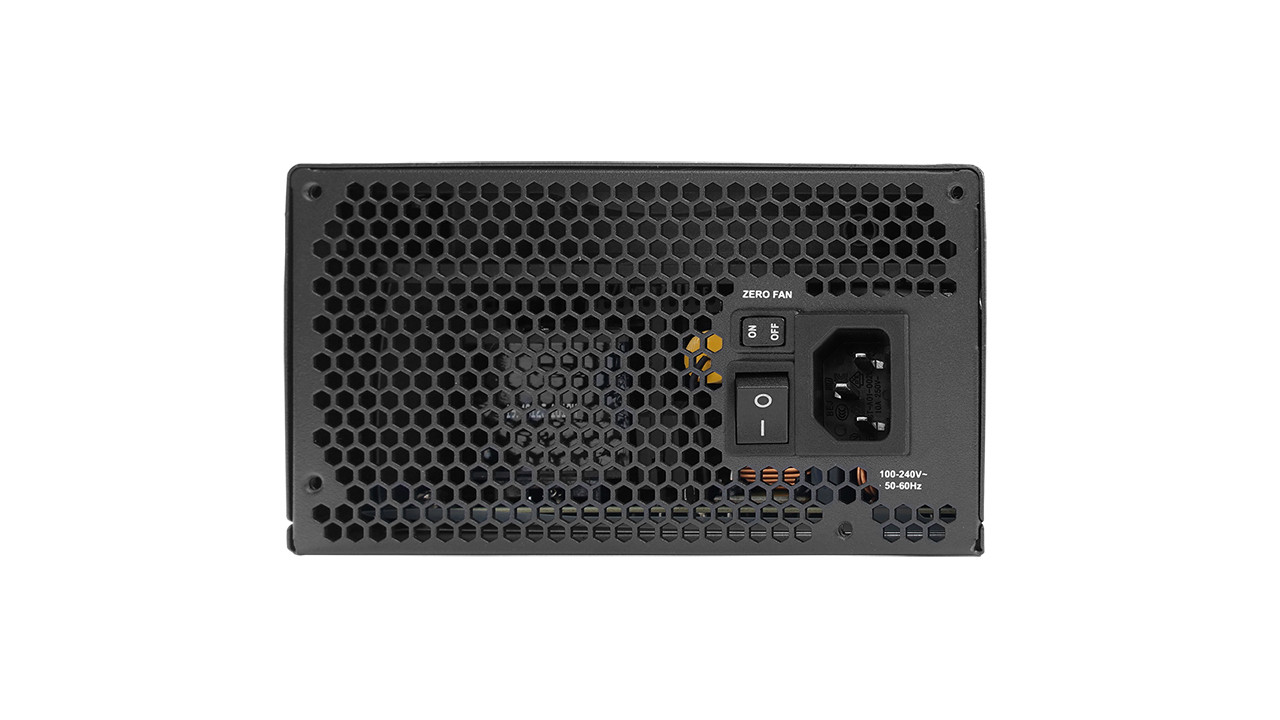

Note: Zero Fan “On” position
The FDB 135mm fan will switch to hibernation mode automatically once the system’s load is lower than 20%. This will maintain the power supply’s stability and noise levels. The fan will begin to rotate when the system’s load is over 20%.
System Load < 20%
Zero RPM Fan Mode
When the system is under 20% load, the fan will automatically stop running to effectively reduce the system’s noise and lengthen the longevity of the fan.
System Load > 20%
Cooling Mode
When the system is above 20% load, the fan will automatically turn on to maintain optimal cooling.
Note: Zero Fan “On” position
Highly Reliable Japanese Aluminium Electrolytic Capacitor
Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan
The PII Series ATX 3.1 comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.
80 PLUS® Platinum Certified for High Efficiency
The PII Series ATX 3.1 is an 80 PLUS® Platinum certified power supply that delivers up to 92% conversion efficiency. This power supply with a new circuit design is able to maintain consistent conversion efficiency even under low loading conditions.
5V and 3.3V DC to DC Design
The PII Series is equipped with a DC to DC converter design, that provides a superior dynamic response, and supports a foundation for greater system stability.
A 10-Year Warranty
We are so confident in the quality of the PII Series power supplies that we offer a 10-year warranty to backup our claim of providing reliable and dependable performance.
| Model | P105II | P130II | |||
|---|---|---|---|---|---|
| Part Number | IW-PS-PII1050W | IW-PS-PII1300W | |||
| Total Power | 1050W | 1300W | |||
| Material | SECC | ||||
| Type | ATX12V V3.1 | ||||
| Cable Management | Fully Modular | ||||
| PFC | Active PFC (> 0.95) | ||||
| Efficiency | 80 PLUS Platinum(Up to 92%) | ||||
| MTBF (Hours) | > 100,000 hrs. | ||||
| AC Input | 100-240Vac, 15-8A, 50-60Hz | ||||
| Fan | 135 mm FDB Fan | ||||
| Typical Load Fan Noise (dBA) (50% Loading) |
< 25 dB(A) | ||||
| Operating Temperature Range (°C) | 0 - 50 °C | ||||
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | ||||
| Safety Certifications | cTUVus、TUV、BSMI、RCM、CE、FCC、UKCA、CB | ||||
| Dimensions (L x W x H) | 150 x 150 x 86 mm | ||||
| Package Dimensions (L x W x H) |
355 x 210 x 105 mm | ||||
| Net Weight | 2.6 kg | 2.8 kg | |||
| Gross Weight | 3.2 kg | 3.4 kg | |||
| Warranty | 10 Years | ||||

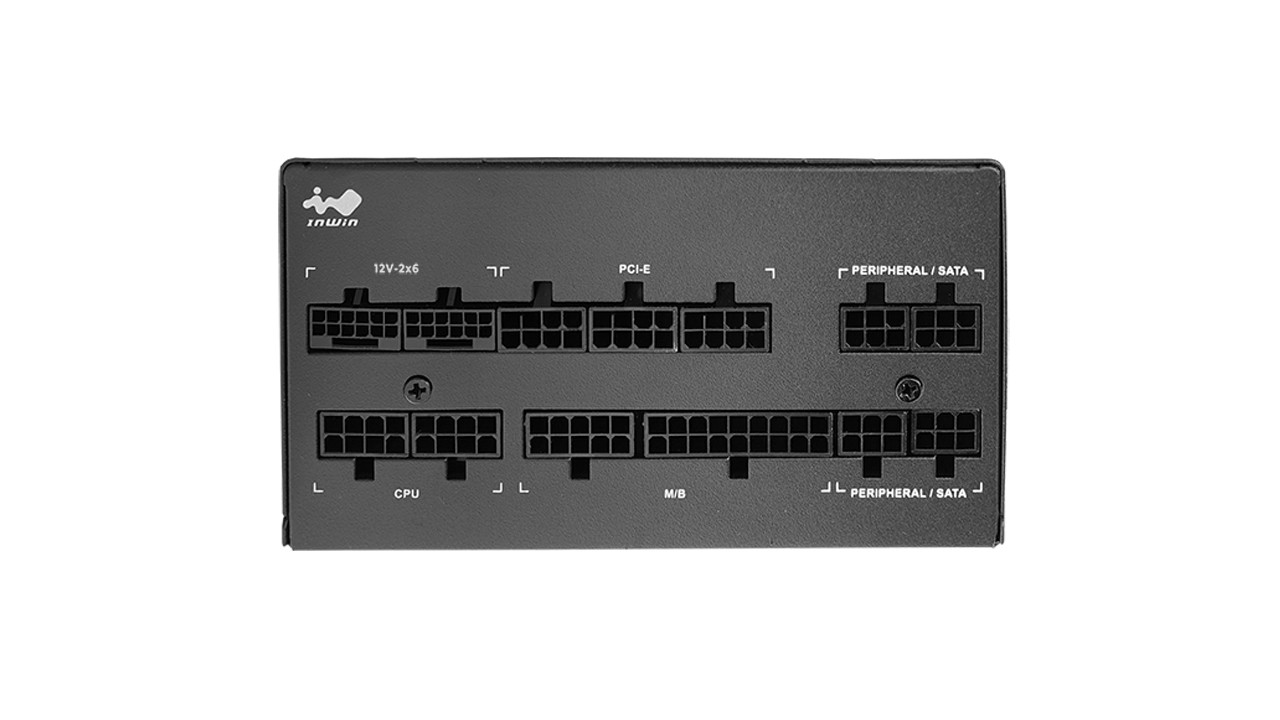

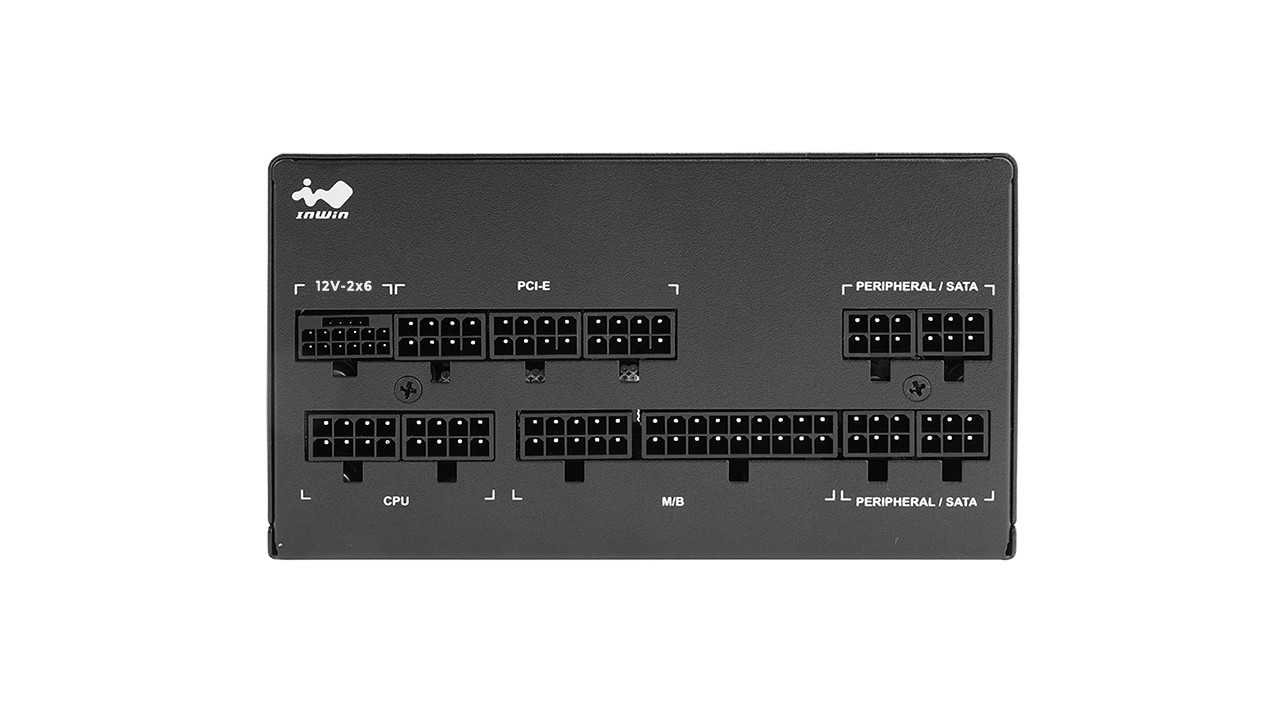

| Connectors | 24 Pin Motherboard | 1 | |||
| 8 (4+4) Pin CPU | 1 | ||||
| 8 Pin CPU | 1 | ||||
| 8 (6+2) Pin PCIe | 6 | ||||
| PCIe 12V-2x6 |
1(600W) | 2(600W) | |||
| 4 Pin Peripheral | 3 | ||||
| SATA (90 Degree) | 9 | ||||
| Floppy | 1 | ||||
| * InWin products comply with RoHS regulations * Specifications may vary based on different regions |
|||||
|
Model
|
AC INPUT | 100-240Vac, 15-8A, 50-60Hz | |||||
|---|---|---|---|---|---|---|---|
| DC OUTPUT | +12V | +5V | +3.3V | -12V | +5VSB | Total Power | |
|
P105II
|
Max. Output Current | 87.5A | 24A | 24A | 0.5A | 3A | 1050W |
|
Max. Combined Power
|
1050W
|
120W
|
6W
|
15W
|
|||
|
P130II
|
Max. Output Current | 108.3A | 24A | 24A | 0.5A | 3A | 1300W |
|
Max. Combined Power
|
1300W
|
120W
|
6W
|
15W
|
|||
